With this latest release of Onshape, we are excited to highlight the following new capabilities:

SKETCHING::SPLITCURVE

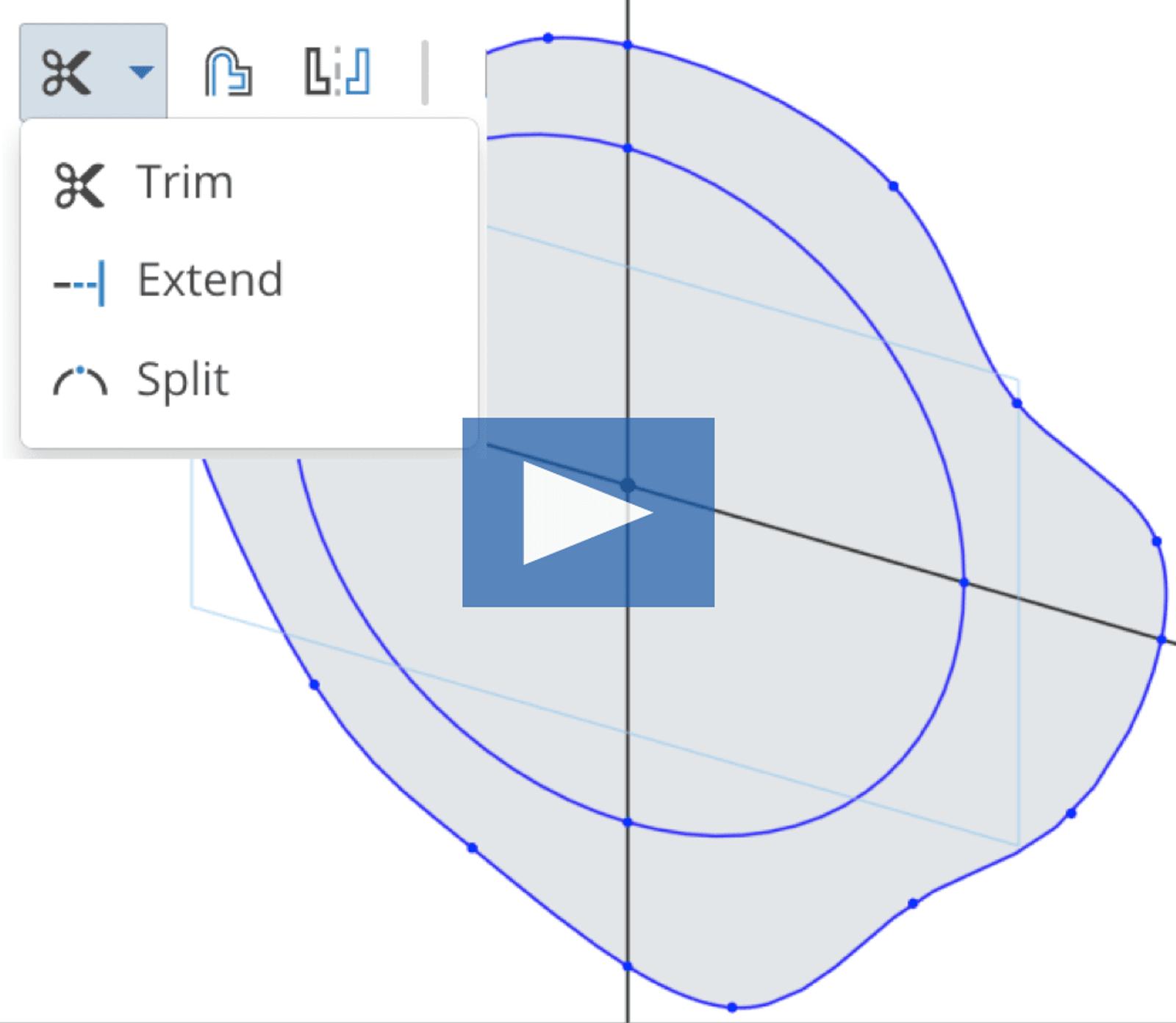

This capability helps you manage complex sketches by isolating just those portions of open or closed sketch entities that you want to work with. Located under the ‘Trim’ functionality, this tool will split any sketch entity at the selected location. Note that you can use existing references as shown in the video to locate the splits.

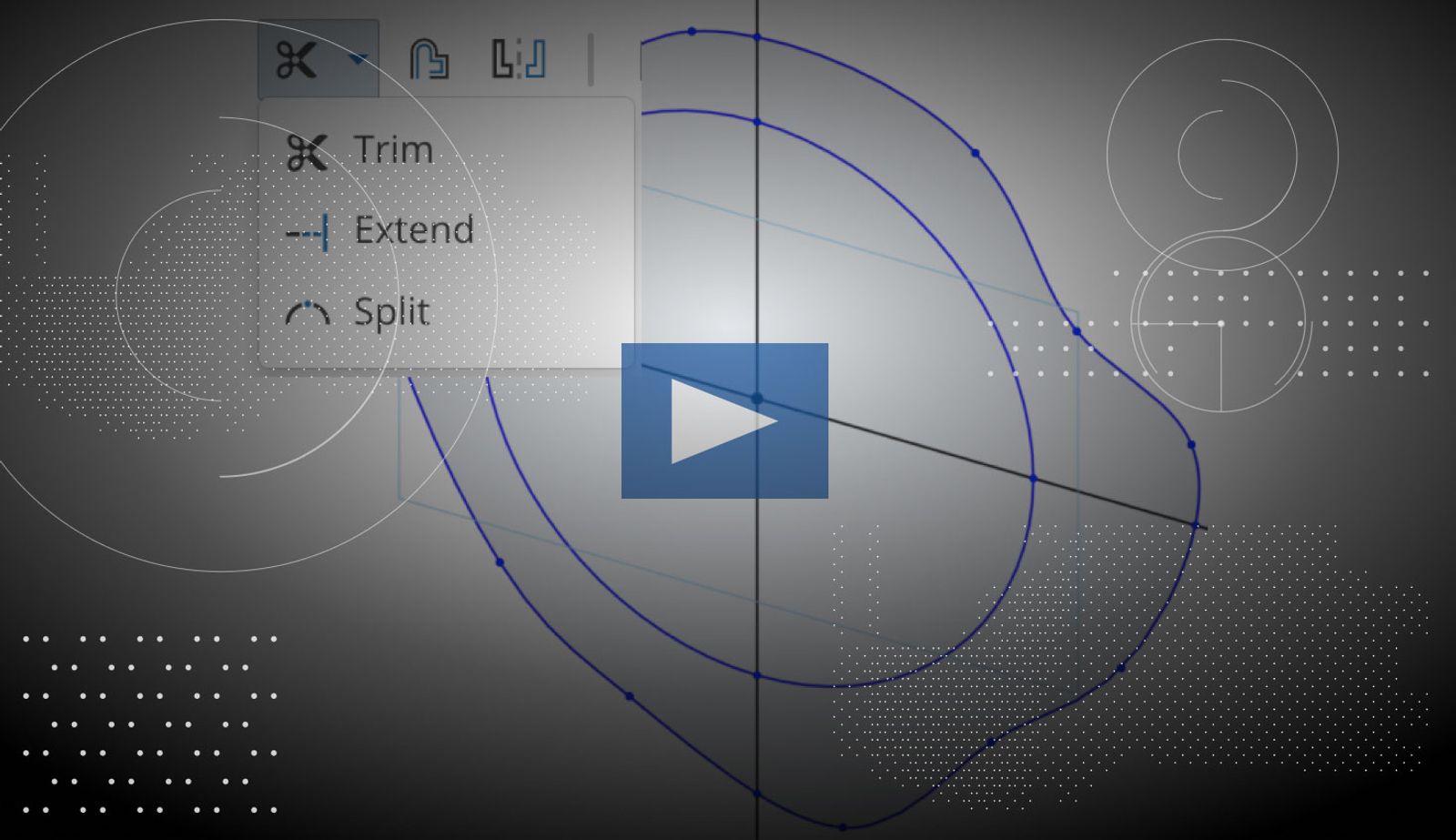

SplitCurve Image


PROGRESSIVE GRAPHICS

Onshape continuously strives to provide the best possible end user experience. With this release, Onshape has significantly sped up tab switching by displaying a progressive render of your part or assembly so that you can immediately begin interacting with your designs. This capability will automatically kick in when needed so you won't always see it.

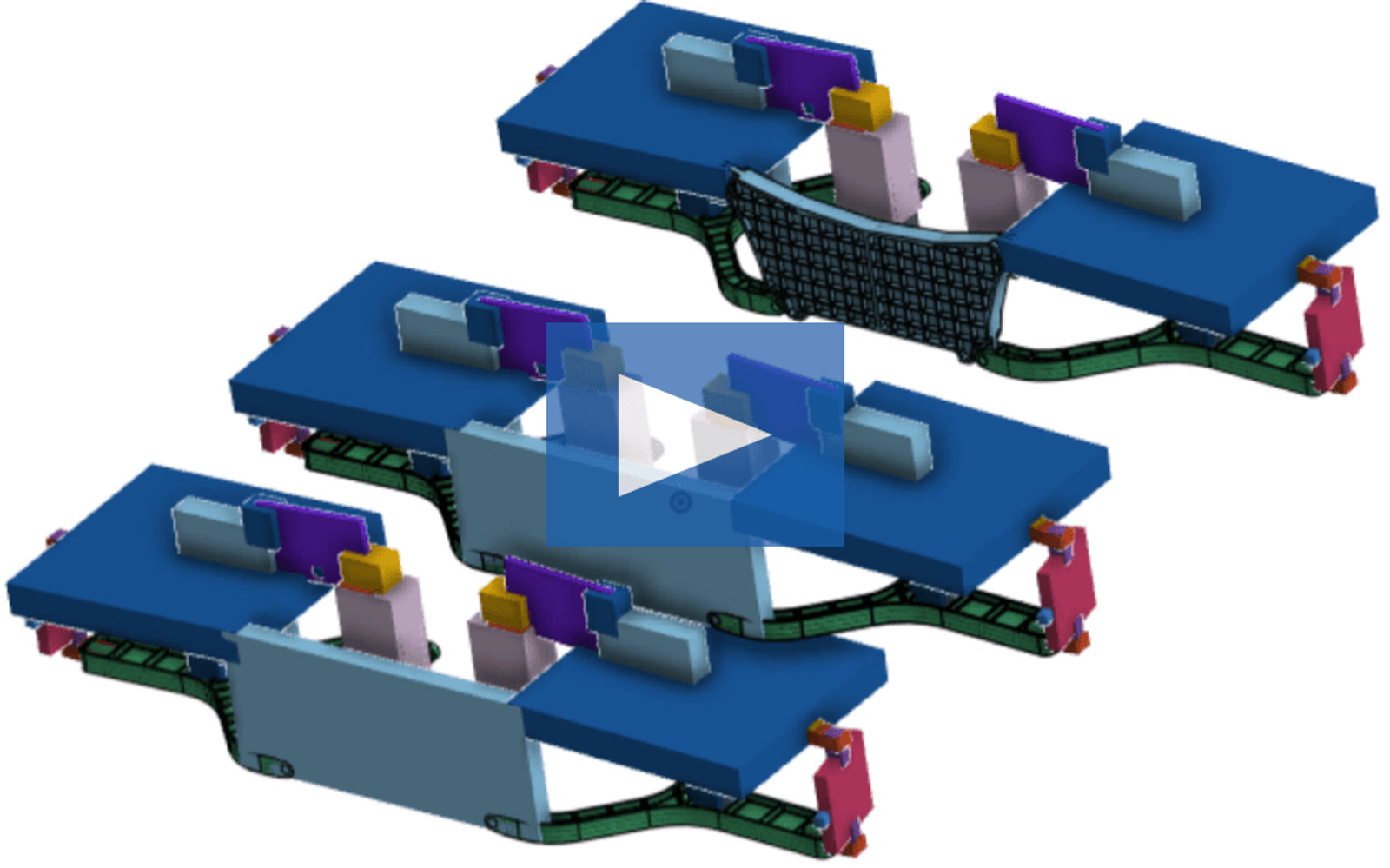

Progressive Graphics

IMPORT OF SOLIDWORKS 'PACK & GO' ZIP FILES

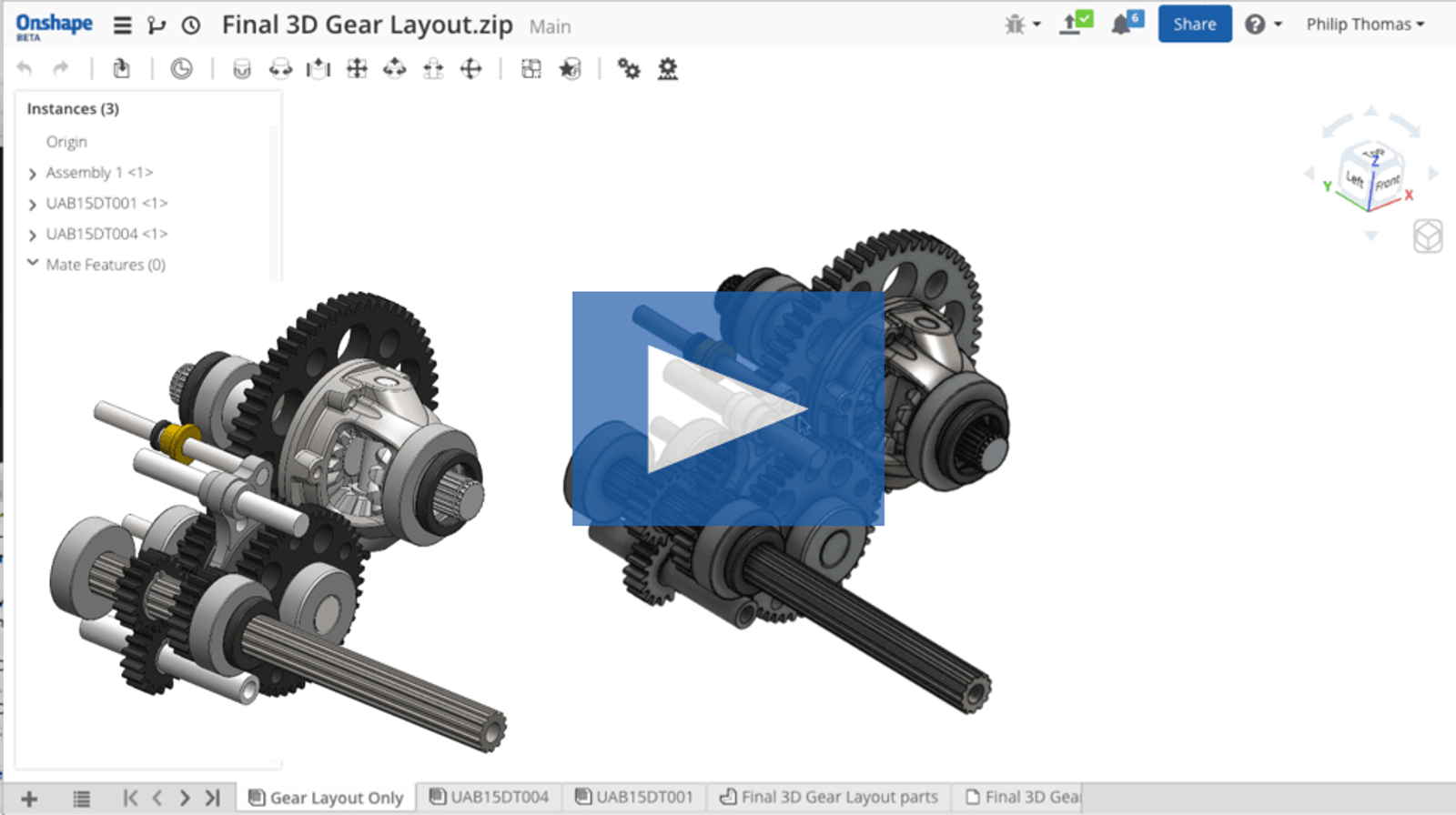

Onshape provides both a flexible platform, and flexible workflows. With this release Onshape announces the ability to read SolidWorks ‘Pack & Go’ zip files. This capability enables you to read SolidWorks product information (parts, colors and assembly structure) directly from SolidWorks (including toolbox parts) and upload them to Onshape for immediate editing, sharing and collaboration.

Import SW Zip Files Image

MATE RELATIONSHIPS

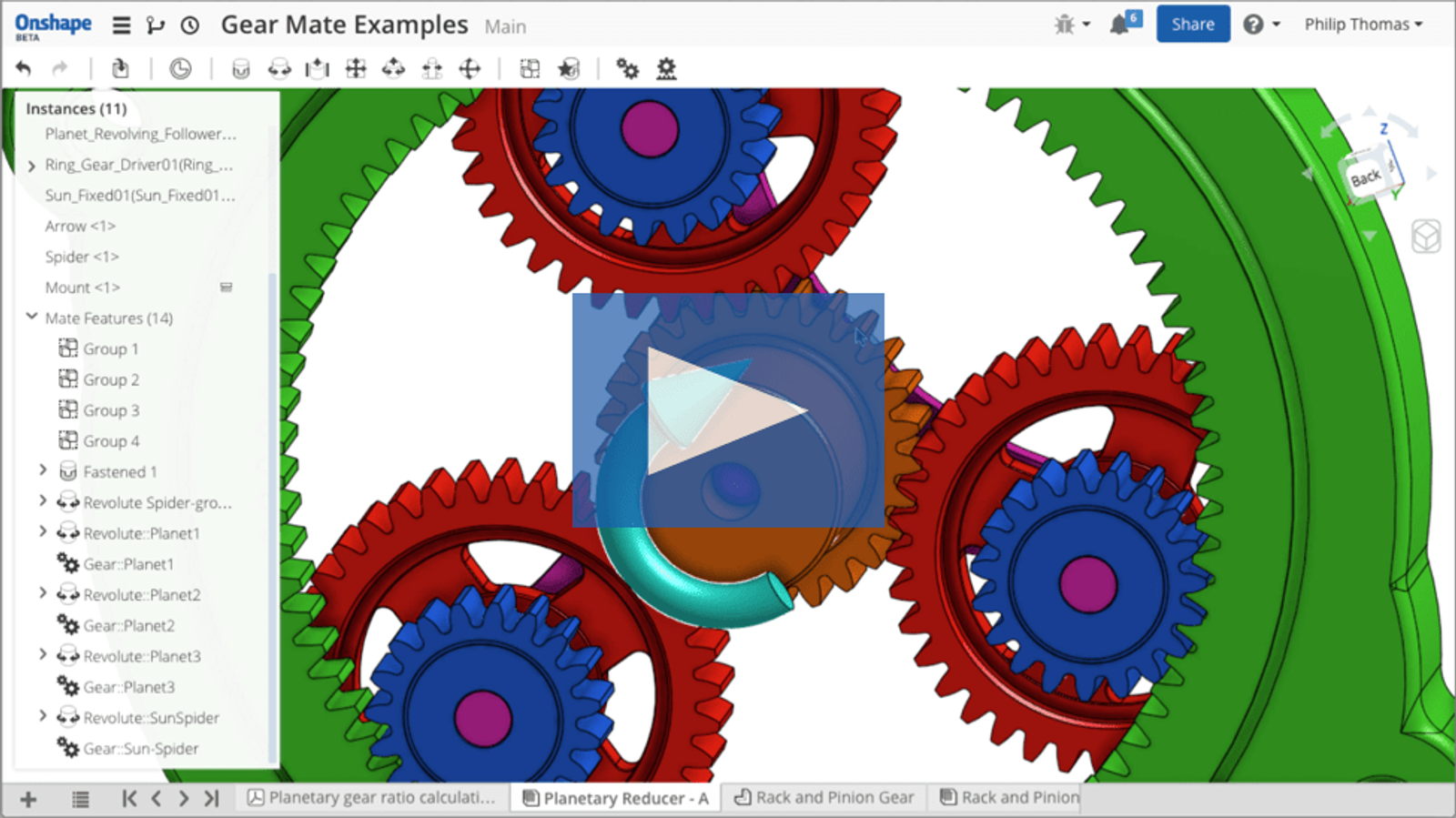

Building on the concept of mechanical joints (ball and socket, pin-slot), Onshape now adds the first of a number of upcoming mate relations.  The first two now available are a Gear relation and a Rack-and-Pinion relation. These are a new type of mating capability that use as inputs two mates (either two revolutes, or a revolute and a slider), as well as a numeric input to define the velocity ratio. With these new capabilities, many new functional mechanism types become possible within Onshape.

Mate Relationships Image
