Exactly three weeks have passed since Onshape’s last update and we are back again with another. This update includes improvements to the newly released Exploded View tool, drawings, and more. Let's dive in.

CAD IMPROVEMENTS

EXPLODED VIEW IMPROVEMENTS

You can now view exploded views when using Follow Mode in Onshape. This can be a useful way to dissect assemblies while collaborating with others.



TABLE IMPROVEMENTS

Improvements have been made to the grip points in tables that allow you to resize all columns or rows at once.



CALLOUT IMPROVEMENTS

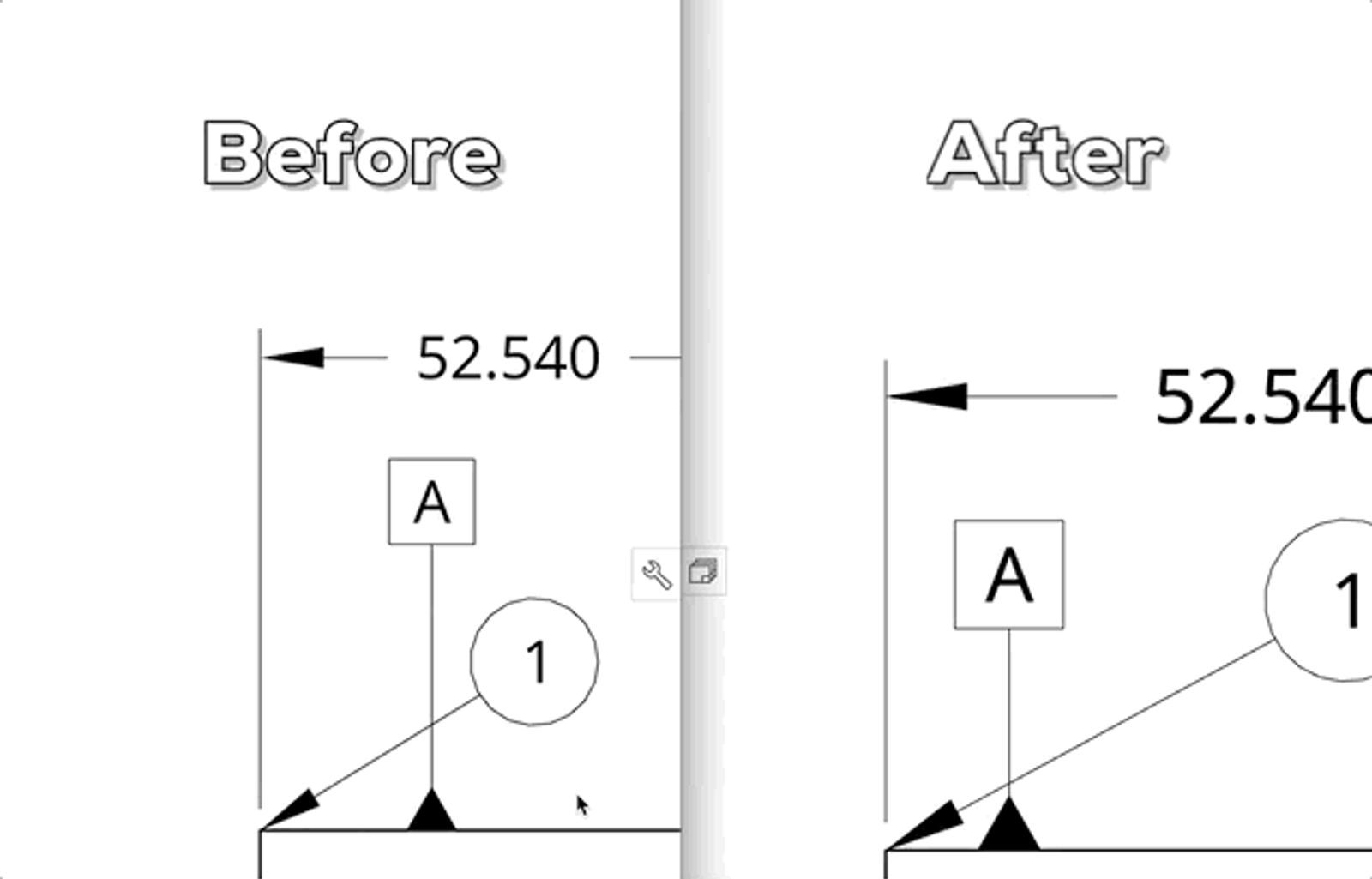

Improvements have been made to callouts and Datum symbols that have eliminated the grip point for dragging. Now you can left-click drag any piece of the annotation and it will allow you to drag.

Balloon Grip Point Improvement

Please take a moment to try out these new features and improvements and leave your comments below. For a detailed list of all the changes in this update, please see the changelog.

Remember: The updates listed here are now live for all users when creating new Documents and over the next few days these features will also be available in Documents created before the date of this update.
