Agile Companies Prefer Designing in Onshape

Taiwanese electric battery and powertrain manufacturer saves 400 engineering hours in a year using Onshape’s custom CAD features.

Read the Case Study →

R&D company Actronika relies on Onshape’s cloud-native CAD platform to collaborate with manufacturing partners in real time.

Read the Case Study →

Electric vehicle manufacturer evTS values Onshape’s real-time data management for improving collaboration with global suppliers.

Read the Case Study →

“Onshape has the best performance / cost ratio.”

“Onshape is great software and it’s in the cloud.”

“30 years in the design field and this is the best CAD system that I have ever used.”

Onshape's Solutions for Automotive

The automotive industry is electrifying in response to incentives, regulations, and consumer demand leaving automakers and their supply chains racing to respond. Onshape is helping companies to adapt and accelerate product design with cloud-native CAD and PDM.

Whether you’re dealing with a new or modified automotive technology, Onshape's advanced assembly design will help your teams to work concurrently to incorporate the batteries, wiring, sensors and PCBs for control systems into the vehicle in a way that stays flexible to change. Include everyone from the lead chassis designer to your major suppliers in real time, decide what to do, and go. That’s Agile product development.

Partnerships during the electrification transition are critical to profitability as R&D, tooling and manufacturing evolves. Put bad communication and old business models in the rearview mirror, and accelerate your competitive advantage with real-time collaboration.

scroll for more →

Be Faster

Slow and steady doesn’t work anymore in the fiercely competitive automotive market. Brand recognition and customer loyalty are most often won by those companies that bring the latest technologies to market early, especially as the industry turns to electric vehicles. It’s no secret that disruptive ideas are more likely to come from new thinking enabled by agile tools and agile product design.

Operating successfully in a changing market calls for agility, not merely doing the same thing faster. Teams that pivot quickly trust Onshape for agile design, adopting the best practices from software development for manufacturing. End up by the side of the road? Not with Onshape.

With Onshape’s cloud-native platform, cross-disciplinary teams design related parts and subassemblies together, even simultaneously, to bring automotive makers to the finish line on time and on budget. Even better, alternate design solutions can be branched and explored in parallel, either together or independently, then merged to arrive at the best possible solution faster. With Onshape, automakers finish first.

Be Focused

To scale and grow, EV manufacturers must steer through an obstacle course of evolving regulations, part shortages, sustainability pressures, and the need to deliver high-quality products to market quickly.

Turn to Onshape’s built-in PDM tools instead of chasing down the latest design version yourself. A live history leaves no confusion by storing and tracking all of the design changes and metadata associated with parts and assemblies, making it effortless for users to locate and reuse existing designs. That adds up to saving time and money.

Onshape and Arena’s cloud-native CAD and PLM platform centralizes product data from design to production, helping teams meet tight product launch timelines and maintain regulatory compliance. Decisions are accelerated with real-time analytics and Dashboards that track your projects helping design issues get fixed faster and teams to reroute when faced with supply chain disruptions.

Be Collaborative

Automotive designers and engineers need to marry aesthetics and practicality as they look to deliver vehicles that look, perform, and operate differently from last year’s model. Processes must be tightly synchronized around the CAD design data because even the smallest refresh of a component requires close collaboration and multiple points of feedback during development and manufacturing.

Onshape’s secure sharing and collaboration tools help teams to break down vehicle complexity and co-design products in real time, leveraging separate engineering disciplines and key suppliers to make steady progress towards production. Onshape’s compatibility with industry-standard data formats reduces barriers to successful collaboration, and all changes to the design data are recorded and tracked in real time. No more scavenger hunts for information, fewer emails and status meetings. With Onshape, teams can focus on realizing the potential of their designs without the frustrations of bad communication.

Be Connected

Modern drivers and their passengers expect new vehicles to come with in-built connectivity. Why? They’re looking for a better driving and ownership experience along with advanced safety features.

Increased vehicle telemetry requires designers and engineers to work more with sensors, antennas and PCBs so vehicles can receive and transmit data with more external devices and services.

Onshape’s PCB Studio connects ECAD data with Onshape’s MCAD design environment, helping designers to get products to market faster as mechanical and electrical designs develop in parallel. In Onshape, the initial PCB design can evolve concurrently with the mechanical design, allowing designers to define board dimensions, enclosure layout options and keep-outs earlier. And that means delivering a final design faster.

Be Smart

As the move to electric vehicles gathers momentum, automakers are evolving designs, manufacturing lines and business models. They’re asking more and more of suppliers as newer models go to market and production of older models winds down. How can suppliers handle these forces, and the pressures they create?

Look to the cloud. Onshape is the only cloud-native product development platform that delivers full-featured CAD, built-in PDM and enterprise analytics in a single system. Its annual subscription model shifts costs from high capital expenditures to lower operating expenditures. The result? Reduced financial risk and more budget to help companies make adjustments to their business models.

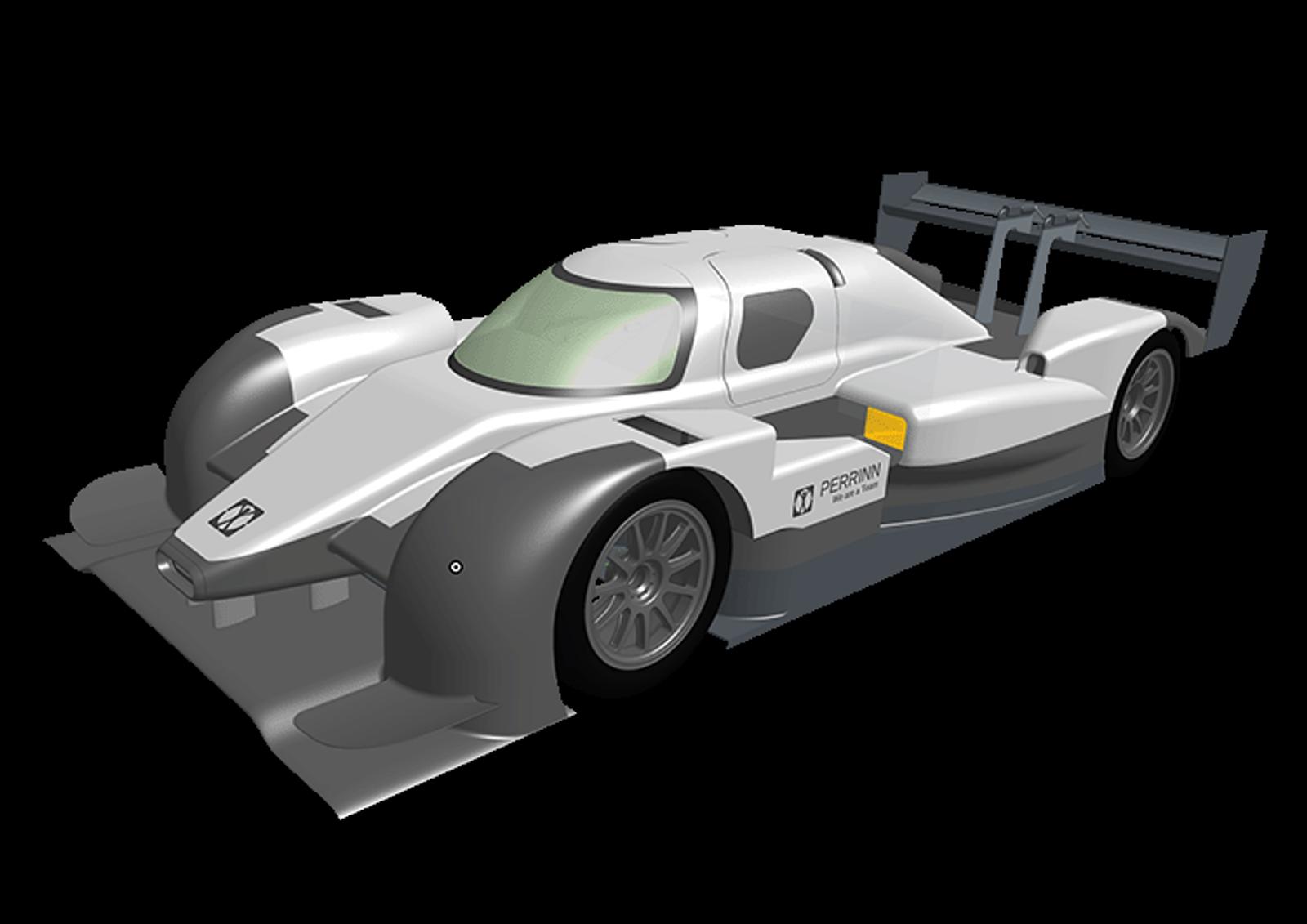

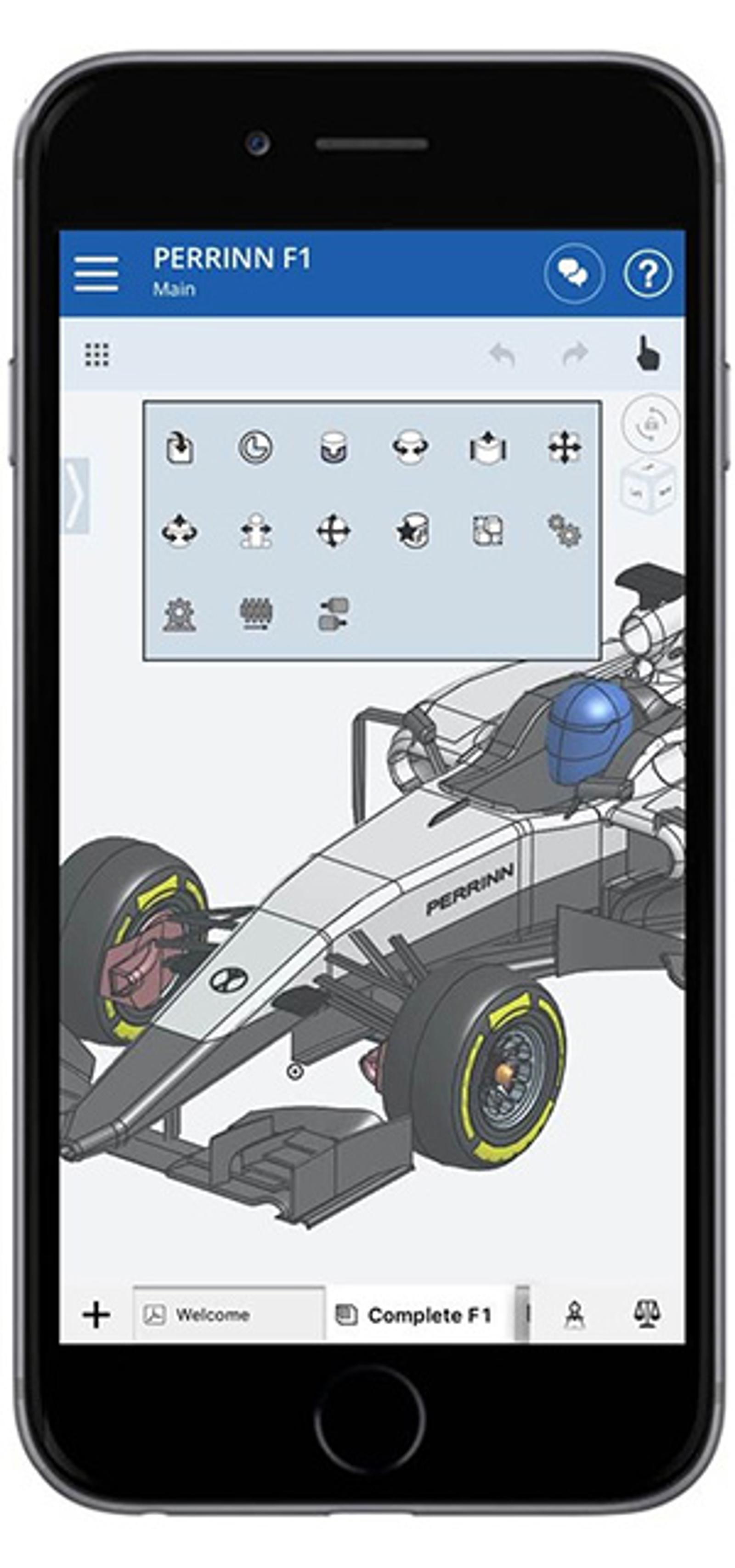

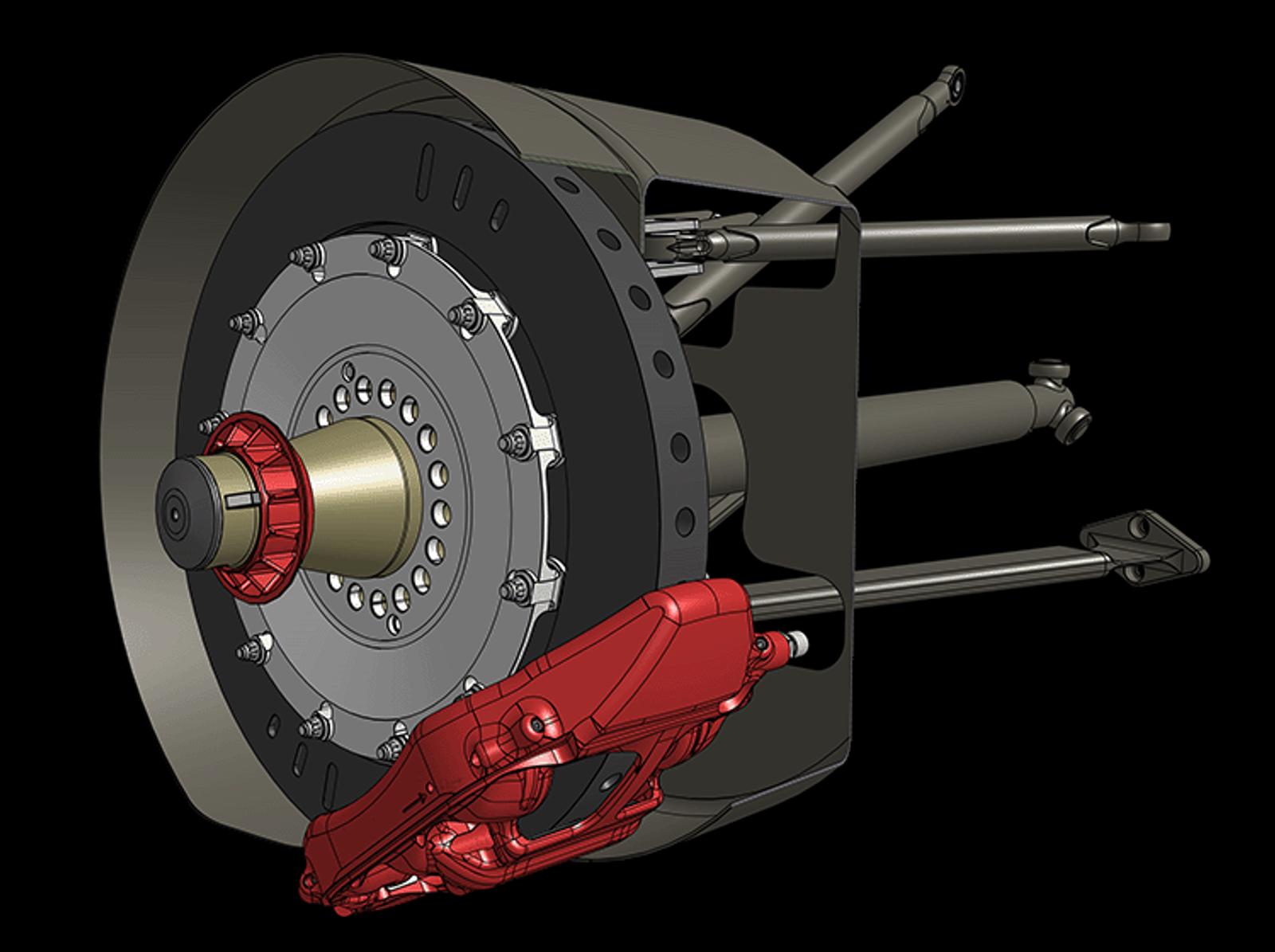

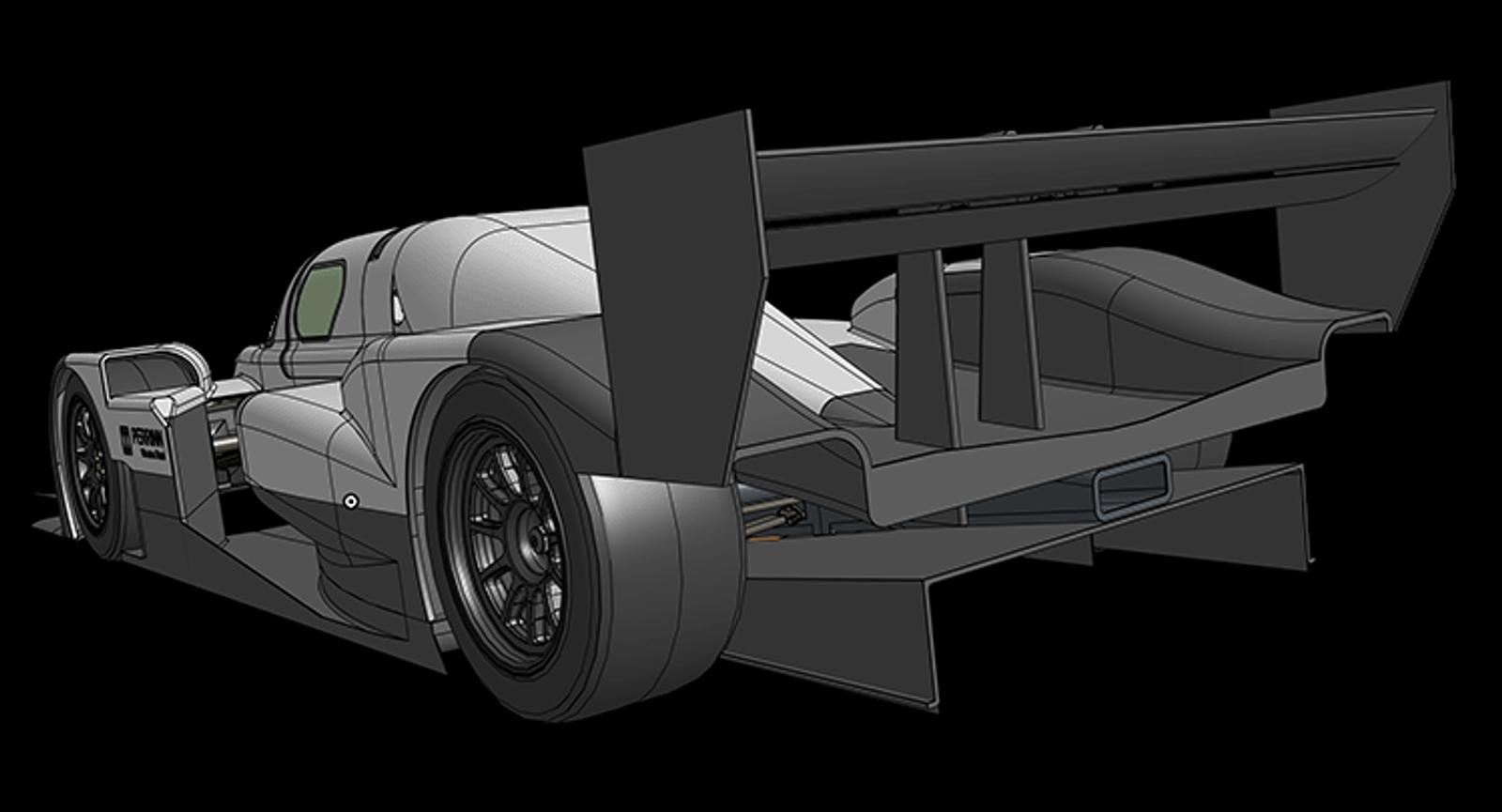

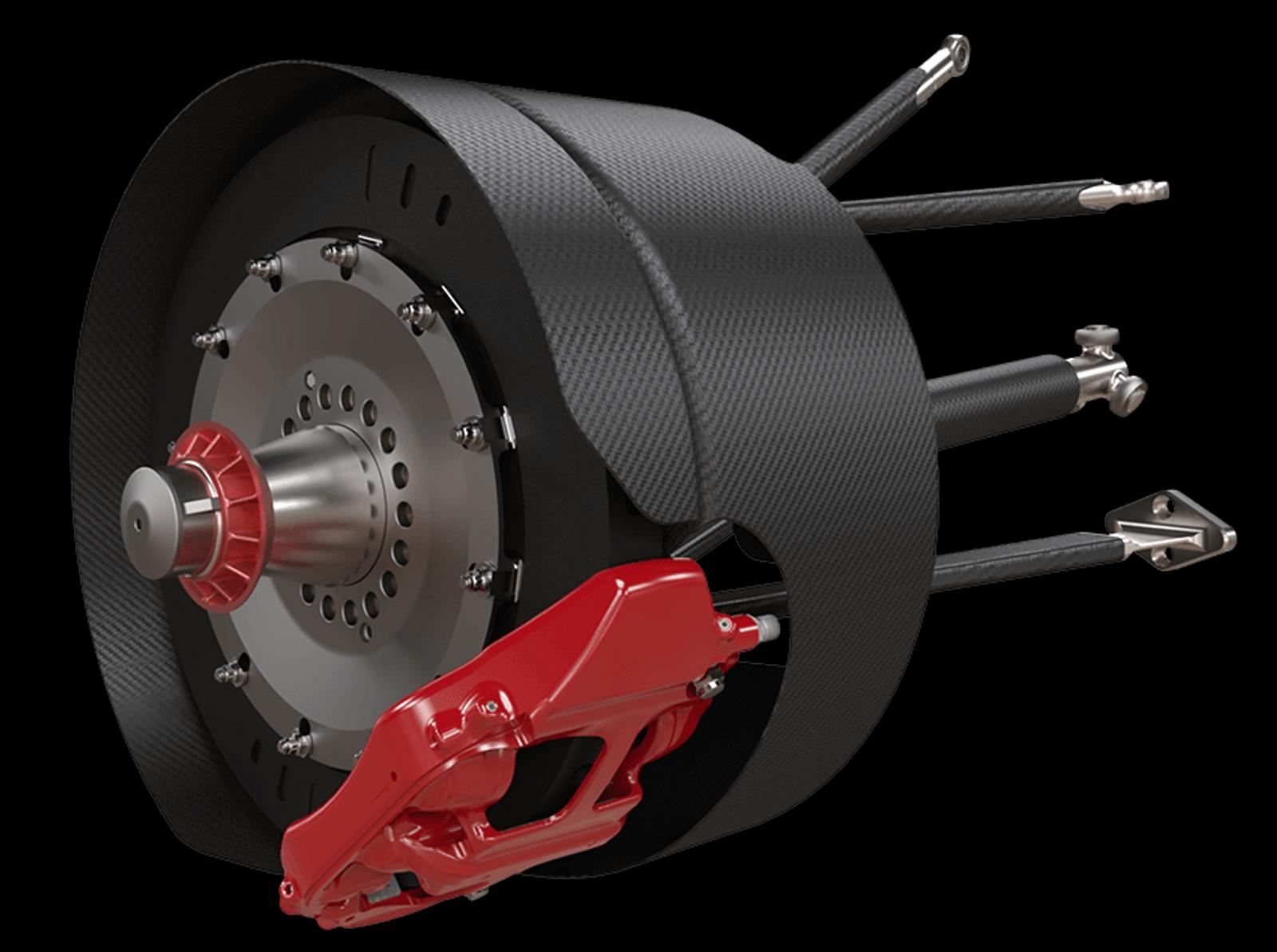

Models courtesy of PERRIN

Did you know?

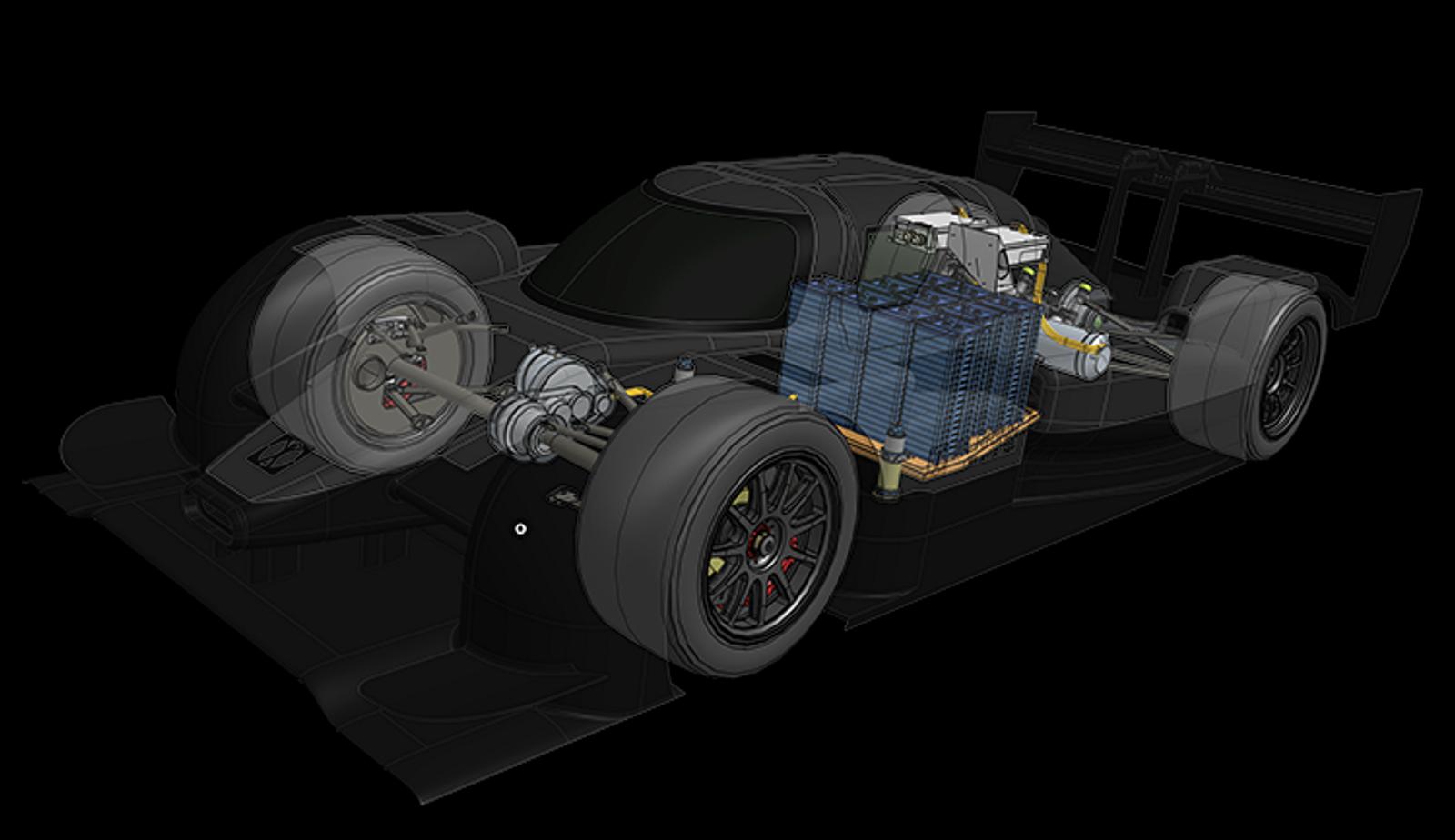

Project 424, the world’s first open sourced electric and autonomous racing car is being designed and developed using Onshape Simulation.

Onshape Updates Every 3 Weeks

Learn how Onshape can make you more efficient every day, and in every way.

Reframe old problems, seek new solutions and take advantage of opportunity.
