What's New in Onshape? (February 11, 2019)

We're continuing to dive into 2019 with another big update involving highly requested improvements! Let's get started.

CAD IMPROVEMENTS

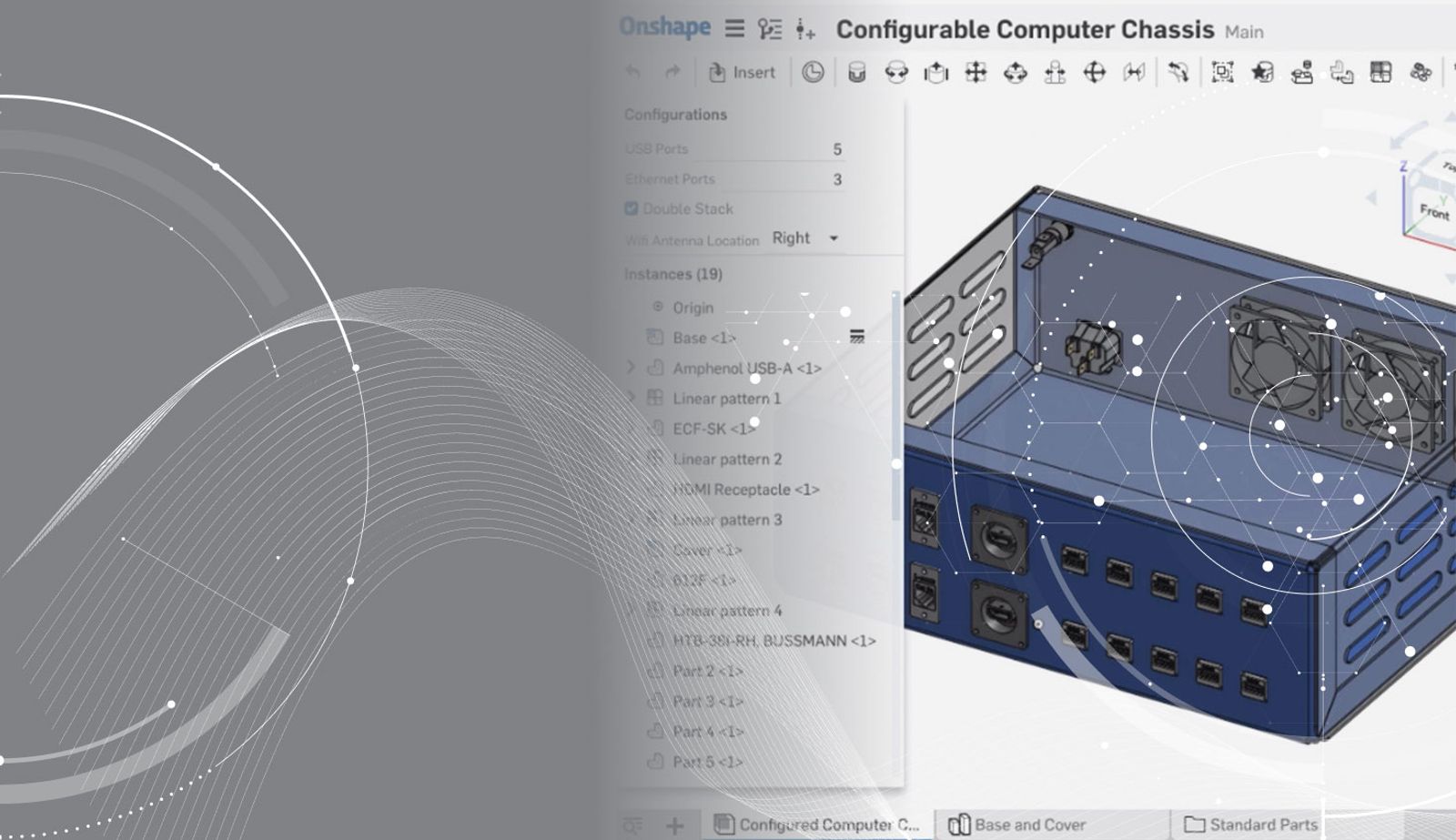

ASSEMBLY CONFIGURATIONS

Onshape's unique approach to configurations using multiple independent inputs is now available at the assembly level.

VARIABLE AUTOCOMPLETE

Variables will now appear for autocompletion in feature dialogs, sketch dimensions, and a number of other places. Other helpful math functions, such as rounding, also autocomplete. For more information, take a look at our help documentation.

MIRROR IMPROVEMENTS

Mate connectors can now be used as a mirror plane in Part Studios.

DRAWING ANNOTATION IMPROVEMENTS

You can now add leaders (even multiple leaders) to GD&T frames, as well as multiple leaders to weld symbols and surface finish symbols.

HOLE CALLOUT SNAP IN ONSHAPE DRAWINGS

Hole Callouts will now snap in Onshape Drawings. This makes them easier to align for improved Drawings organization.

SECTION VIEW DEPTH

You can now define the depth of Section Views in Onshape Drawings.

IMPORT IMPROVEMENTS

Onshape now supports importing the following file types:

• ACIS up to 2018 1.0
• Solid Edge 2019
• SolidWorks 2019
• Unigraphics NX 12+

ENTERPRISE IMPROVEMENTS

SINGLE SIGN-ON WITH GOOGLE

Gli amministratori aziendali possono ora abilitare il single sign-on (SSO) su Onshape tramite l'account Google di un utente. Ciò consente agli utenti di accedere con Google, ma non include la gestione delle identità con Google. L'SSO è disponibile per le piattaforme web e mobili di Onshape. Gli amministratori possono abilitare l'SSO nelle impostazioni di autenticazione aziendali.

Please take a moment to try out these new features and improvements and leave your comments below. For a detailed list of all the changes in this update, please see the changelog.

Remember: The updates listed here are now live for all users when creating new Onshape Documents. Over the next few days, these features will also be available in Documents created prior to this update.
