October is here! It has been three weeks since our last update and we are back with another. This update focuses on usability and performance improvements in many different areas of Onshape. Let's dig in.
CAD IMPROVEMENTS
HOLE TABLE IMPROVEMENTS
We announced the addition of Hole Tables in our last release. In this update, we've made multiple improvements that make them easier to use.
GEOMETRIC TOLERANCE SYMBOL IMPROVEMENTS
You can now attach Geometric Tolerance Symbols to dimension extension lines in Onshape Drawings.
SHEET METAL IMPROVEMENTS
Improvements have been made to Sheet Metal tools in Onshape to better handle multi-edge bends in a single feature. This makes Sheet Metal more robust in situations where you have cuts across the bend.
SEARCH RESULT IMPROVEMENTS
Part number, revision, and state now appear below the name when searching in Onshape. This makes it easy to see important information about the thing you are searching for without needing to open it. You’ll also notice a new icon has been added to indicate “Latest Revision.”
DOCUMENTS PAGE IMPROVEMENTS

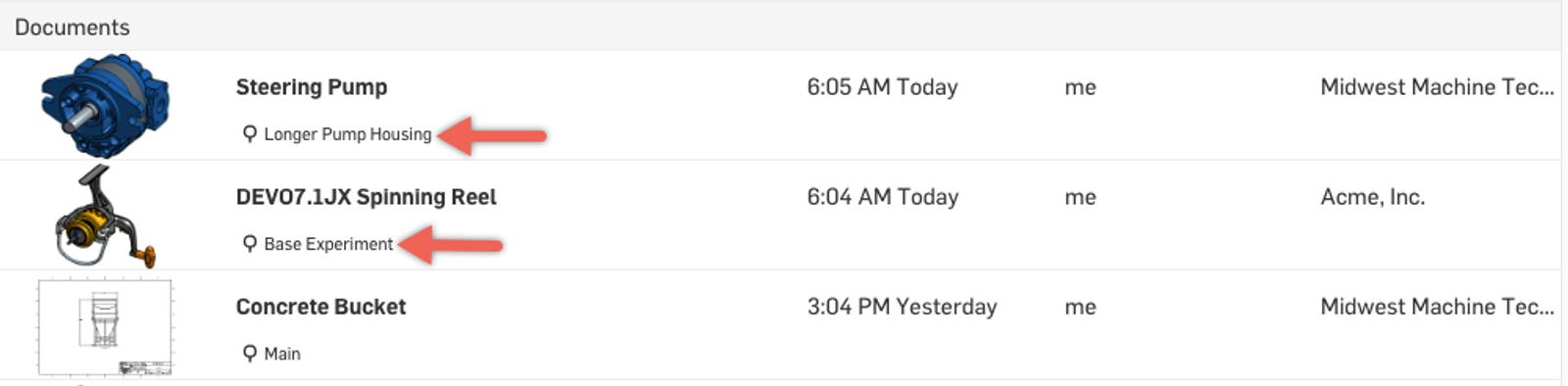

You will now see the most recently edited branch when viewing the Documents list from the Documents page.
"SWITCH TO" CONTEXT MENU IMPROVEMENTS

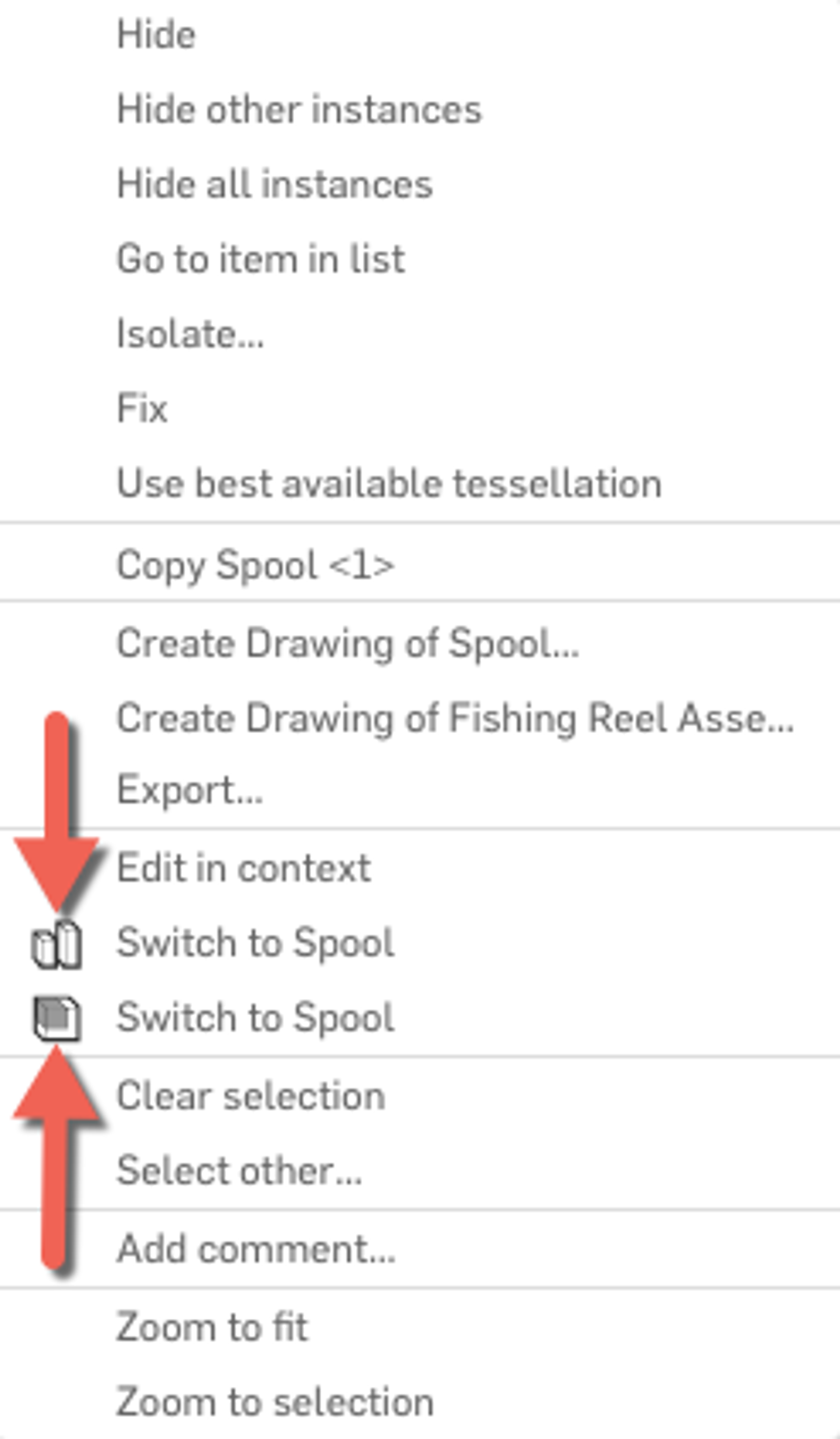

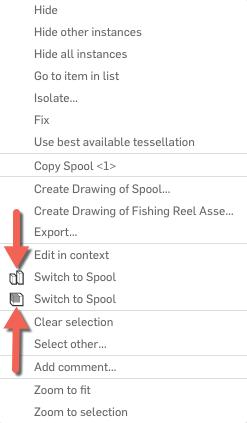

When right-clicking a part in an assembly and using the "Switch to" command, you will now see icons to better delineate between the Part Studio and Assembly.
glTF EXPORT OPTION

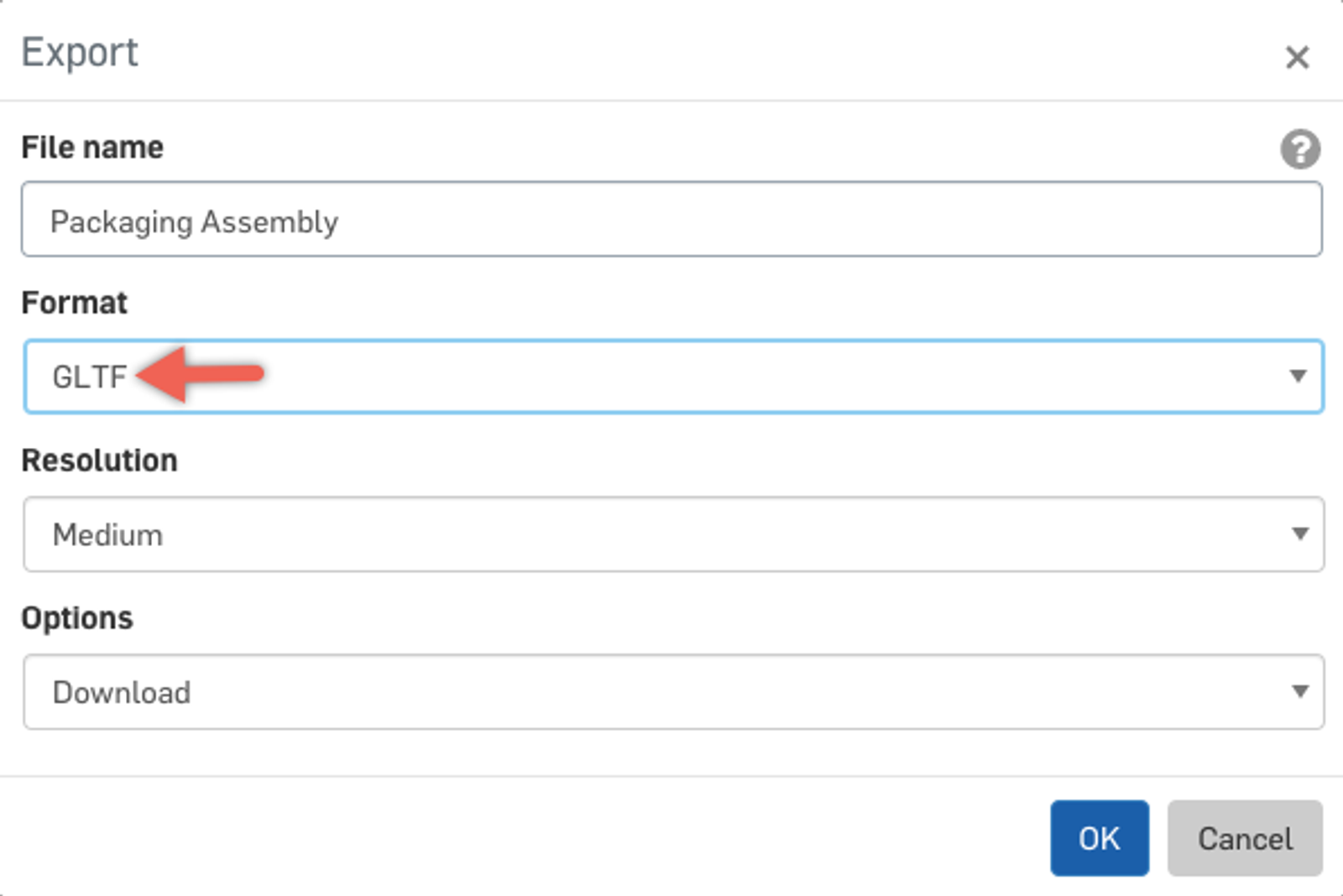

You can now export parts and assemblies to the glTF file format.
LARGE ASSEMBLY PERFORMANCE IMPROVEMENTS
Changes have been made to improve large assembly performance in several areas. This includes changes that allow Onshape to open bigger assemblies, improve selection/highlighting performance, and decrease load times.
ENTERPRISE IMPROVEMENTS
DASHBOARD PERFORMANCE IMPROVEMENTS
Performance improvements have been made to reduce the load times of many of the Analytics Dashboards in Onshape Enterprise.
LEARNING CENTER IMPROVEMENTS
"INTRO TO CAD" COURSES
You will find a new "Intro to CAD" pathway in the Learning Center. This pathway is composed of four new courses, geared to new CAD users, and focuses on understanding how to model in a 3D parametric feature-based CAD system, using Onshape.
Please take a moment to try out these new features and improvements and leave your comments below. For a detailed list of all the changes in this update, please see the changelog.
Do you have a great idea for a new feature or improvement in Onshape? Please post your ideas in the Onshape Forums or vote on existing feature requests to help us prioritize development.
