What’s New: Width Mate, Sheet Metal Cone, Drawings Improvements

It's been three weeks and we are back again with an exciting new update. It includes two of our most popular requests and a number of quality of life improvements. Let's dig in.

CAD Improvements

Width Mate

You will find a new Width mate in Onshape assemblies. This new mate makes centering parts in the assembly easier than ever.

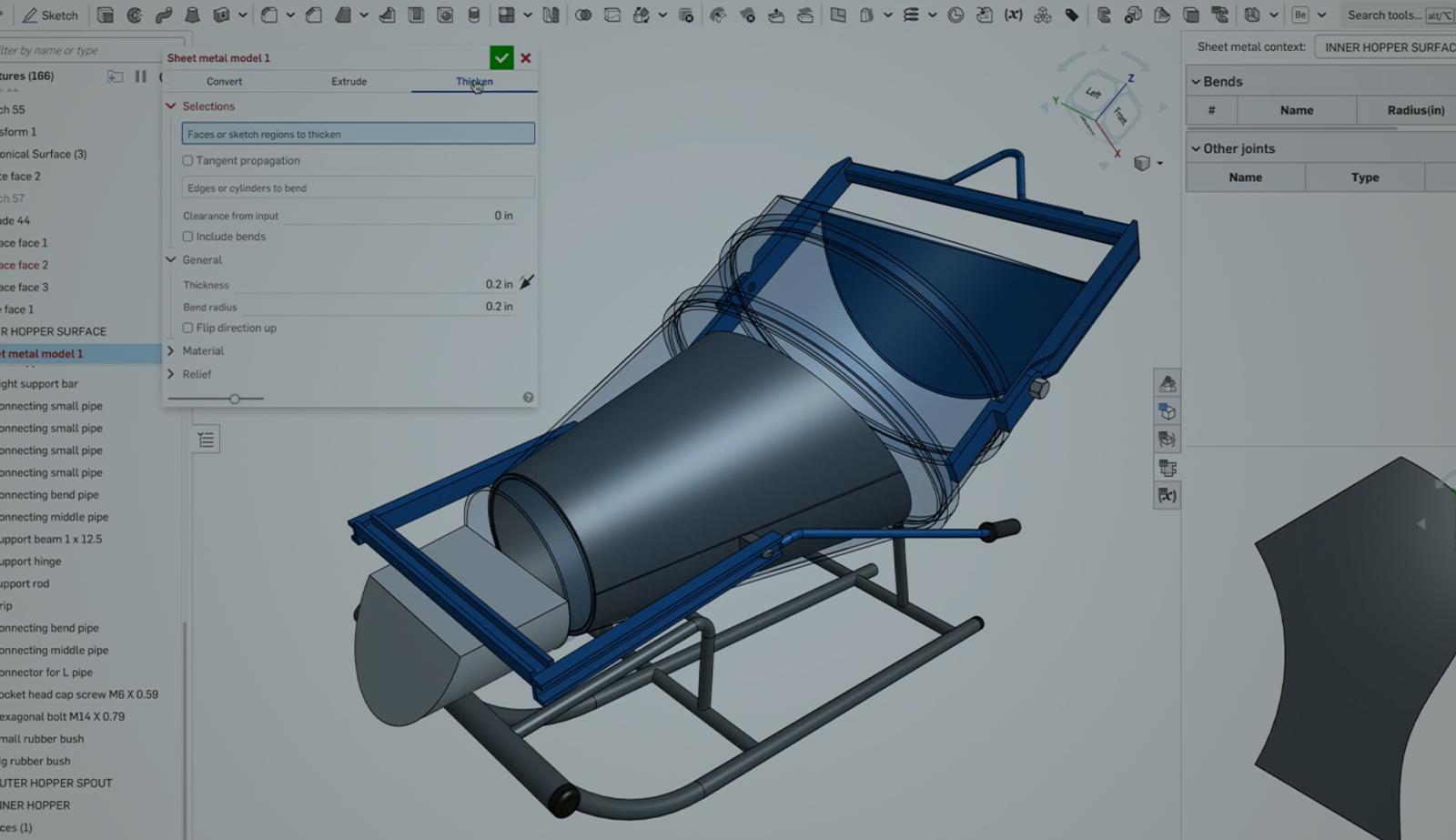

Sheet Metal Cone

The Thicken option in the Sheet metal model feature now supports conical faces. This gives you the ability to create conical geometry that unfolds.

Horizontal Scrollbar on Bill of Materials

The BOM horizontal scrollbar is available without scrolling to the bottom.

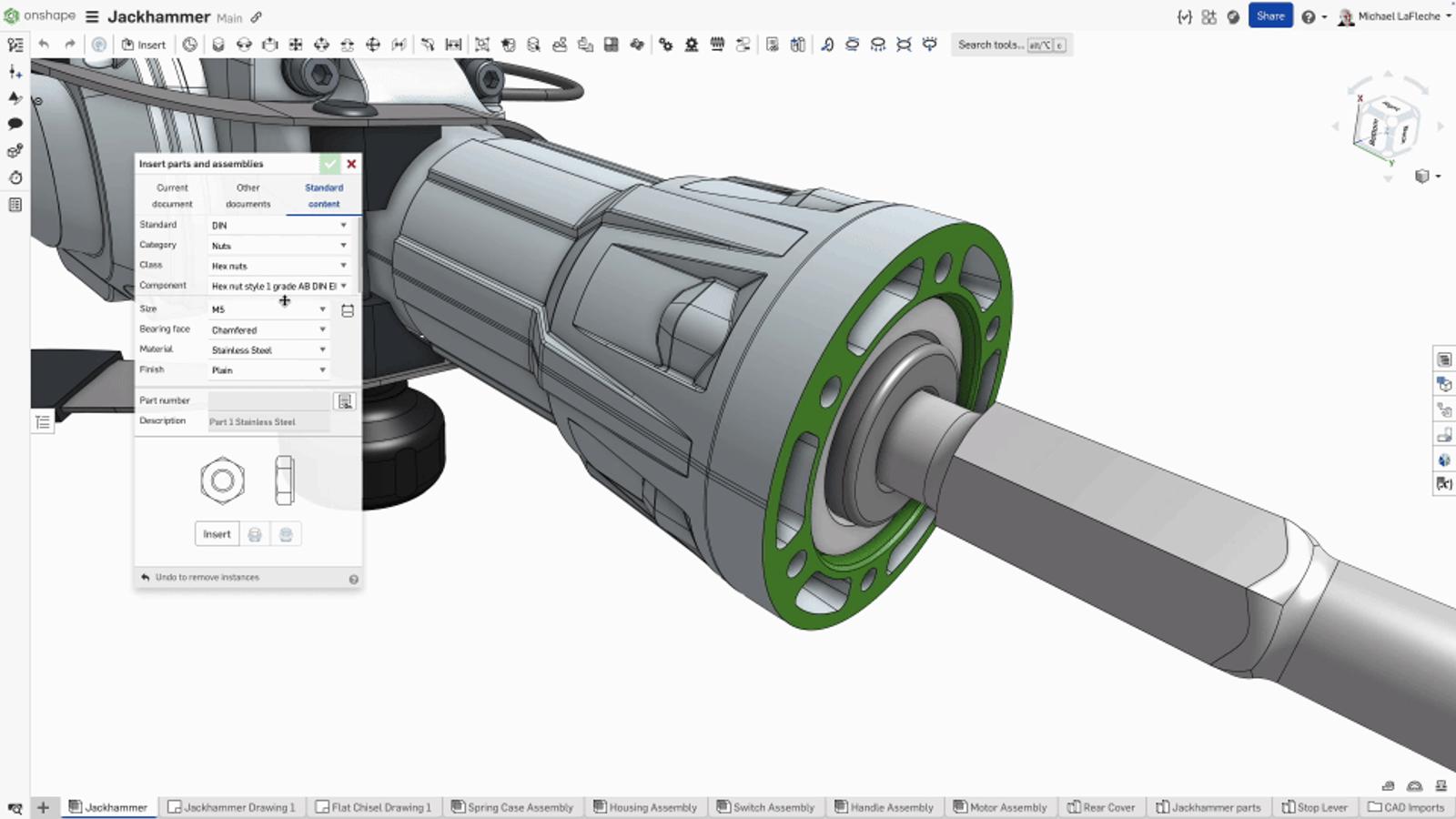

Horizontal Resize of Insert Dialog

The Insert dialog, used in many places to add entities (for example, to add instances in Assemblies), can now be resized horizontally.

Drawing Improvements

Tangent Arc

Earlier this year we announced the ability to create parametric sketches in drawings. With this update, we are adding the ability to sketch a tangent arc in a drawing.

Callout Justification

You can now control text justification of callout items on a drawing. You will find a new Text justification option under Callouts in Drawing properties.

Education Enterprise

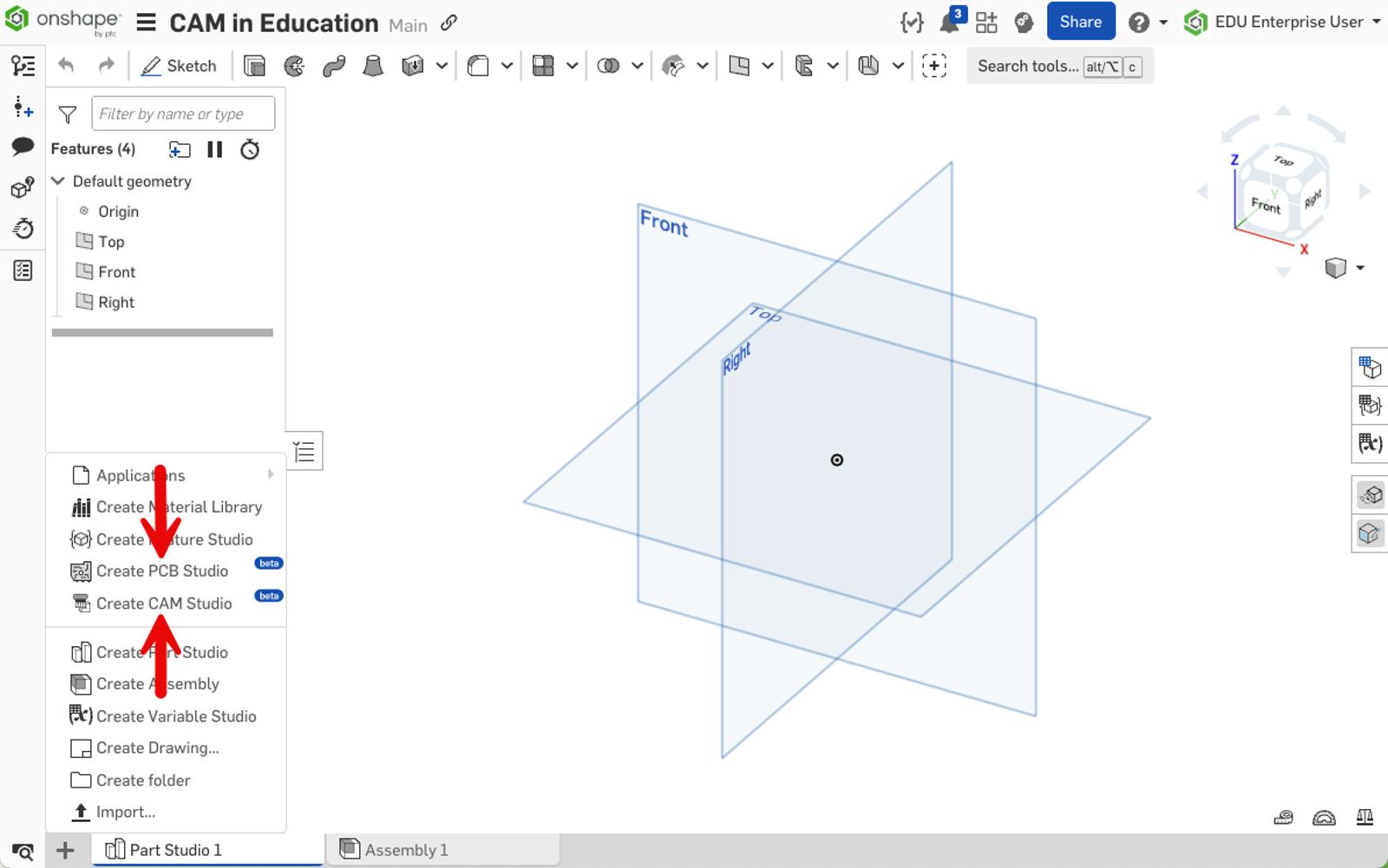

PCB Studio and CAM Studio Availability

Onshape Education Enterprise users now have access to PCB Studio and CAM Studio. For more information, see the Education Community category in the forums.

Please take a moment to try out these new features and improvements and leave your comments in the Onshape Forums post. For a detailed list of all the changes in this update, please see the changelog.

Remember: The updates listed here are now live for all users when creating new Documents. Over the next few days, these features will also be available in Documents created before this update.
