It has been 3 weeks since Onshape’s last update and we are ready again with another big list of improvements. Many of these have been highly requested, so let's get started.

CAD IMPROVEMENTS

DISPLAY STATES

You can now create Display States in Onshape Assemblies. Display States allow you to capture the hide/show state of parts or subassemblies and reuse it in the future.




Video Thumbnail














IMPORT IMPROVEMENTS

Improvements have been made to the import process to make it more intuitive. The import dialog has been changed to better illustrate the various import options and there is now smarter logic in place to handle importing geometry in the correct orientation.




Video Thumbnail














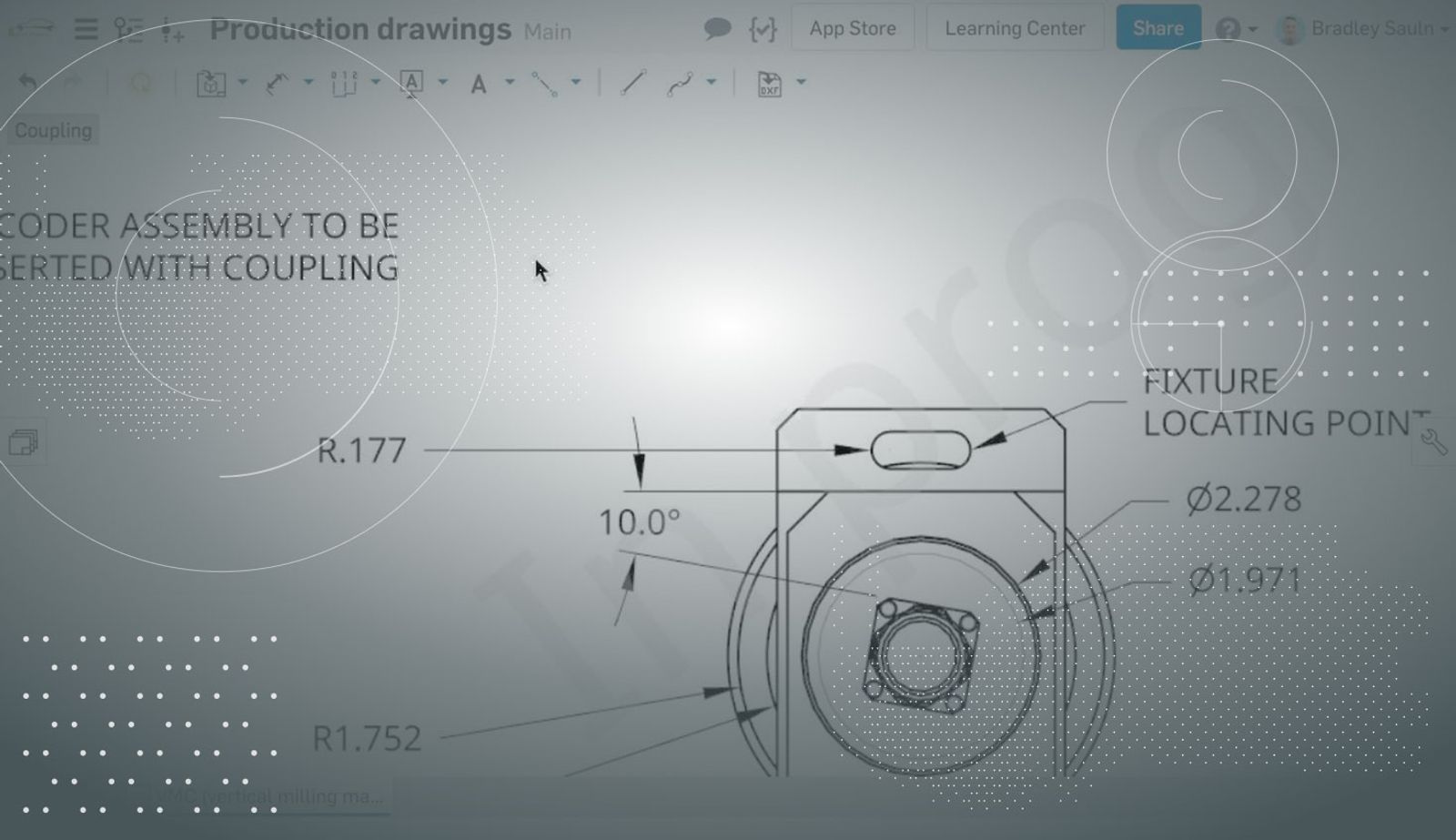

NEW ARROWHEAD TYPES IN ONSHAPE DRAWINGS

You will find two new arrowhead types in the Drawing properties flyout. They include no arrowhead and a tick mark.




Video Thumbnail














EDIT VIEW LABEL PROPERTIES IN ONSHAPE DRAWINGS

You can now edit the font, font size, font style, and color of view labels in Onshape Drawings. You will find these new options in the Drawing Properties flyout under the "Views" tab.




Video Thumbnail














EXPORT PERMISSIONS FOR ANONYMOUS LINKS

You will find a new "export" option when creating an anonymous link to share. This is useful if you want to share with someone who does not have an Onshape account, but needs the ability to export your model.

WARNING WHEN CREATING VERSION WITH OUTDATED DRAWING

Now when you create a version in a Document that has an out-of-date drawing, you will see a warning.

EXPORT MESH

You can now export mesh geometry to STL, Parasolid, Collada, and Rhino. In the past, mesh data could not be exported.

PROFESSIONAL FEATURES

SET CUSTOM PROPERTIES WITH FEATURESCRIPT

You can now set custom properties in FeatureScript with the setProperty function. This new functionality in setProperty allows the FeatureScript author to assign values from the model directly to properties of that part.




Video Thumbnail














CUSTOM REVISION SCHEMES

You can now define a custom revision scheme using an imported text file.




Video Thumbnail














ENTERPRISE FEATURES

ALLOW ANONYMOUS LINK SHARING

As an admin or owner of an Enterprise in Onshape, you will find a new global permission setting to allow anonymous link sharing. This is off by default and was not possible in the past.

FILTER BY FOLDER IN ONSHAPE ENTERPRISE

When viewing the Project Dashboard, you can now filter by a folder within the Project.

Please take a moment to try out these new features and improvements and leave your comments below. For a detailed list of all the changes in this update, please see the changelog.


Do you have a great idea for a new feature or improvement in Onshape? Please post your ideas in the Onshape Forums or vote on existing feature requests to help us prioritize development.
