We’re celebrating August with another great Onshape release! This update features a highly requested improvement to Assemblies along with many other improvements across the platform. Let's jump in.
The User Interface can now be displayed in Italian. Go to “My Account > Preferences > Display Language” to change languages for individual users.
ABILITY TO FILTER FEATURE LIST FOR ERRORS
The filter capabilities in Onshape Part Studios have been extended with this release. It is now easy to find any features with errors or warnings by using the “:errors” filter.
PARAMETRIC REPLICATE TOOL IN ASSEMBLIES
Until now, the Replicate command in Assemblies would repeat entities and mates onto matching geometry in a one-time manner. This made it difficult to visualize which components were associated with Replicate, and didn’t allow for modification of the Replicate parameters after the fact. With this release, Replicate will now behave as a parametric entity much like assembly patterns.
APPLY LIMITS TO BALL MATE ROTATION IN ASSEMBLIES
With this latest update, you can now add rotational limits to ball mates in Assemblies. The limit is defined as the maximum angle created between the Z-axes of the two mate connectors, defining a cone of rotation for your ball joint.
ABILITY TO FLIP ORIENTATION OF SHEET METAL FLAT PATTERN
With this release, Onshape now gives you the ability to determine the up-direction of your Sheet Metal flat patterns. This allows for increased control over appearance and bend notes in Drawings.
SUPPORT FOR PVZ EXPORT
With this update, Onshape now supports the export of Parts and Assemblies to the PVZ format. This capability makes it easy to exchange data with a range of other PTC applications.
SPLIT CURVE OPERATION

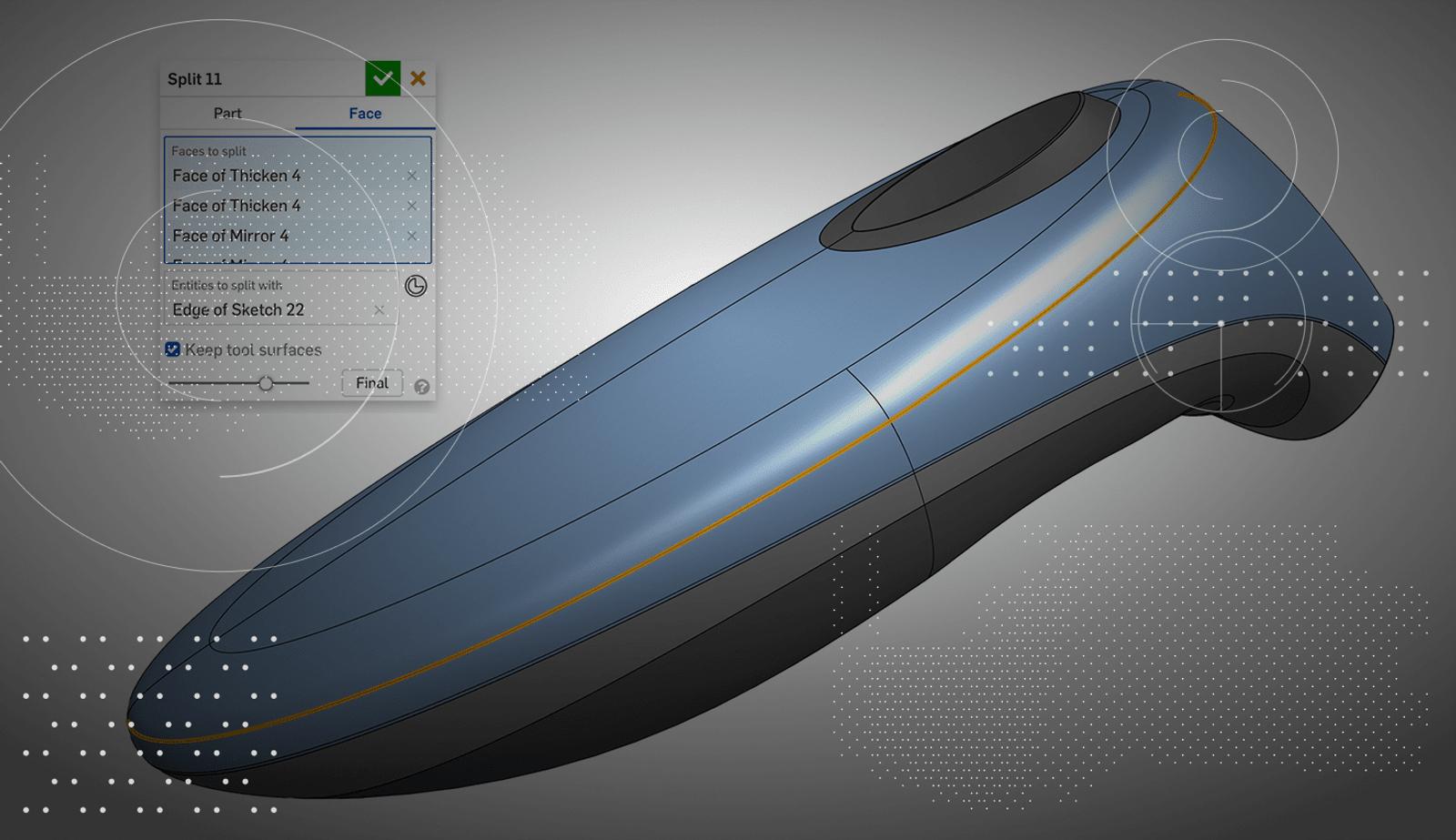

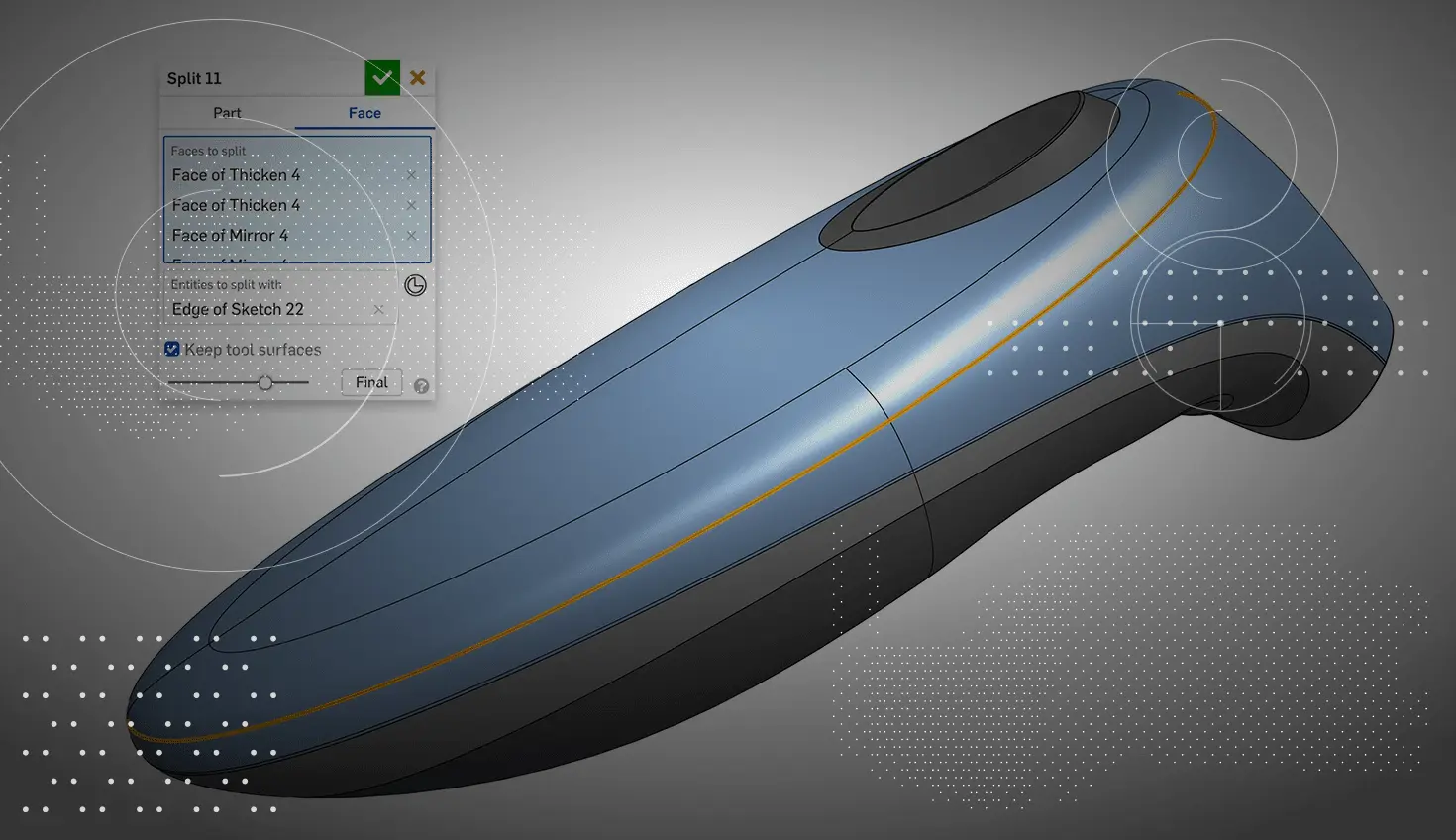

With this release, the Split command has been improved to now be able to split curve components. This can be particularly useful for working with a portion of a projected curve.
SELECT CONICAL SURFACE FOR SECTION VIEW
The Section View tool can now accept conical faces as its input. It will automatically bring the section plane to the center of the conical surface. This is particularly useful when working with drafted components and screw bosses.
PROFILE VIEWS OF TOROIDAL EDGES NOW SEEN AS ARCS
When creating drawings of springs and other toroidal components, Onshape’s Drawings will now see the profile view as an arc, allowing for radial dimensions to be applied. This makes it simple to call out the inner and outer radii of springs.
IMPROVED CONTEXT MENUS FOR DRAWING VIEWS
In this latest release, we have improved the context menus for Drawing views. You will find the options are now grouped logically by functionality and include sub-menus to prevent the dialog from getting too long.
ANALYTICS REPORTING FOR FAILED SIGN-IN ATTEMPTS
This update includes additional security and IP visibility within Onshape Enterprise. Now, any failed sign-in attempt, classified as the correct email with the incorrect password, will be tracked and reported within Enterprise Analytics.
iOS READ-ONLY FEATURE DIALOGS
iOS users with View and Copy permissions can now open feature dialogs to interrogate feature inputs.
Please take a moment to try out these new features and improvements and leave your comments in the Onshape Forum. For a detailed list of all the changes in this update, please see the changelog.
Interested in learning more Onshape Tech Tips? You can review the most recent technical blogs here.
