What's New in Onshape's Latest Update (March 29th, 2021)

Spring is finally here! With its warmer weather, singing birds AND of course, a number or great Onshape improvements. We are excited to bring you our second release this month, which includes big improvements to variables and more. Let’s take a look.

CAD IMPROVEMENTS

VARIABLE TABLE

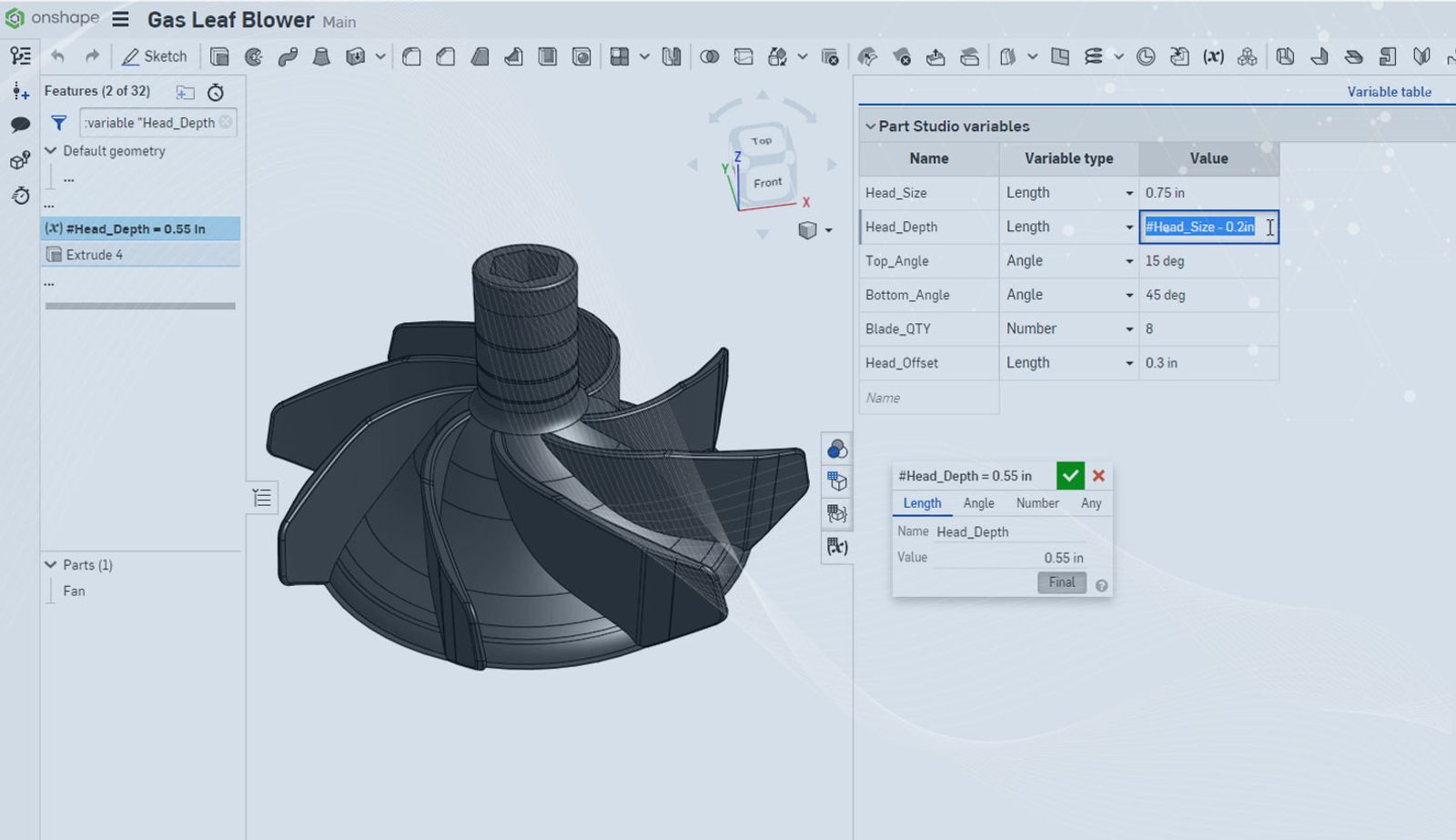

Variables can now be viewed, created or edited in a new panel on the right-hand side of the screen in a Part Studio. This new variable table makes it much easier to find and edit variables, especially when multiple variables are scattered throughout your Feature list.

DRAWING IMPROVEMENTS

EXPORT IMAGES

Drawing sheets can now be exported as SVG, JPEG or PNG image formats.

Image: https://us.v-cdn.net/5022071/uploads/editor/7b/kidx03mdcntv.gif

SECTION AND DETAIL VIEW IDENTIFIERS

Currently the drawings sheet panel only shows “Section” and “Detail” for those types of views. In this release, the drawing sheet panel has been Improved to reveal Section and Detail view identifiers like “Section A-A” or “Detail B.”

Image: https://lh6.googleusercontent.com/ZLhBfX6OnajuxlNML8tX6xsdouIqZEJ_M4sgH1irgy0Mt2Ao8Kanxvq6DpkDJcglJSX05EwrS4AKotdoucL2kDaeT99E_DsiOme_suvowhs3ih2Szg5VMcBGBC9JG8pBnypaiZwC

EXPORT SELECTED DRAWING SHEETS

Until now, for DWG and DXF formats, you only had two choices when exporting a drawing: export all sheets or export the current sheet. Now you can also specify which sheet you want to export. Use the “Custom Sheets” option and specify the range of sheets you would like to export. This is very similar to how you would select pages for a printer.

Image: https://us.v-cdn.net/5022071/uploads/editor/mu/td637jo6uni5.gif

MOBILE IMPROVEMENTS

IOS - MASS PROPERTIES OVERRIDE

With this release, we have added the functionality to override mass properties. Sometimes users will want to give a part a prescribed mass since the density is not easily calculated. This prevents the user from having to back calculate a density to give the part the mass they want.

IOS - HIDE ALL MATES/HIDE OTHER MATES

With this release, we have added the functionality to hide all mates or hide other mates. This gives you more flexibility when working in the assembly environment.

Image: https://lh4.googleusercontent.com/aKj7KRaVqS5KRfrl7WFJkJZZnBrnX5-6q_UwDsk2O3QjGOn7eVmyFPHBazKRJjJn8-ynU0dcaPG8MBn-rlqXLyZaQw9AOuAq6dEDMBIn01WUNQzmE5cnGjHKjYXlyvLilCMCiteF

GENERAL IMPROVEMENTS

EDUCATION ACCOUNT EXPIRY NOTIFICATIONS

Onshape Education Standard users will now receive a notification to renew their account at least one week before their account expires to ensure continuity. If the account is not renewed, it will be downgraded to the Onshape Free plan.

PERFORMANCE IMPROVEMENTS

In addition to adding great new features every 3 weeks, improving performance is a top priority here at Onshape. With this update, we have improved assembly opening time and reduced client-side memory usage. In other words, less data is now needed so your assemblies will open faster.

ENTERPRISE IMPROVEMENTS

INTEGRATING WITH PingOne

With this release, we have new instructions showing users how to integrate Onshape’s Enterprise with PingOne, a Single Sign On (SSO) provider.

Please take a moment to try out these new features and improvements and leave your comments below. For a detailed list of all the changes in this update, please see the changelog.

Remember: The updates listed here are now live for all users when creating new Onshape Documents and over the next few days these features will also be available in Documents created before the date of this update.
