Although we are near the end of 2020, the Onshape development team is not slowing down. This release includes a number of frequently requested features including markup. Let’s take a closer look.

CAD IMPROVEMENTS

ABILITY TO APPLY MARKUP TO COMMENTS

Markup is now available in the Comments section of Onshape.


EXPLODE LINE FORMAT IN DRAWINGS

You can control Explode line weight and color in “Drawing properties > Views > All views.”


SECTION VIEW OPTIONS

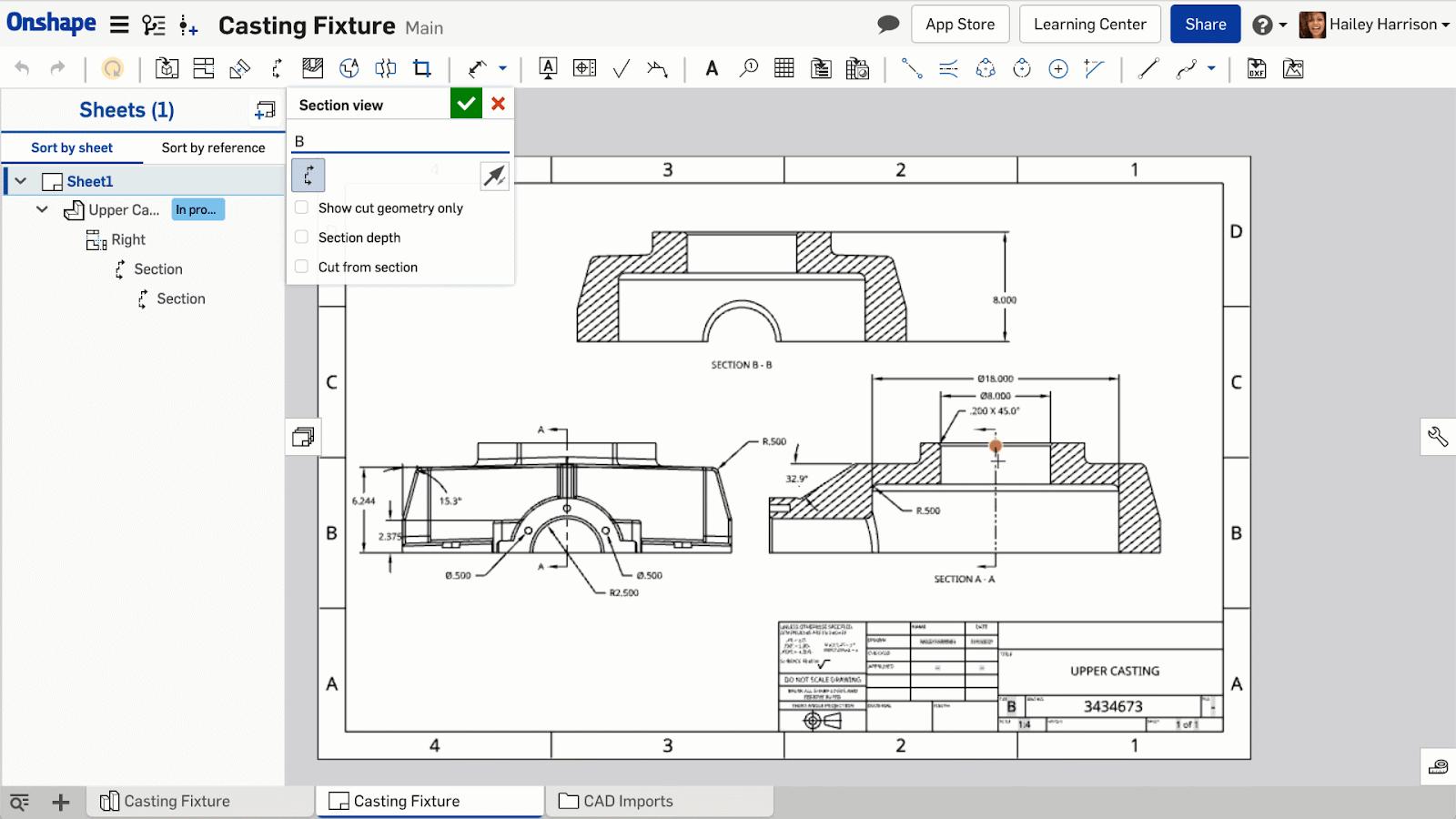

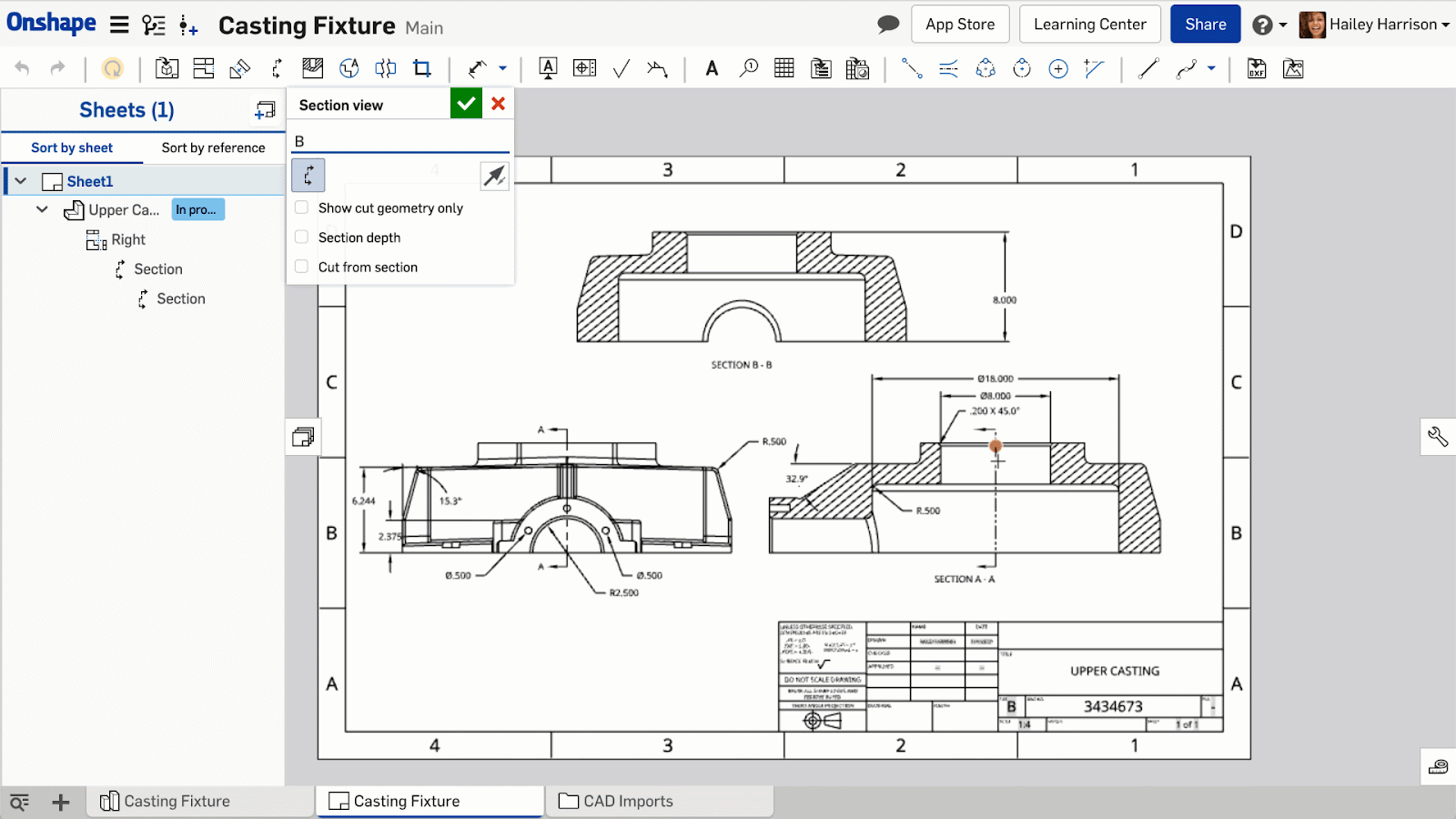

When you add a section view to a section view, you can choose whether to cut the base geometry or cut the already sectioned geometry with a toggle.



MOBILE IMPROVEMENTS

IOS INSERT IMAGES FROM MOBILE DEVICE

Now you can import local images or take an image from your camera for import into Onshape on an iOS mobile device.


ENTERPRISE IMPROVEMENTS

COMPANY SETTINGS

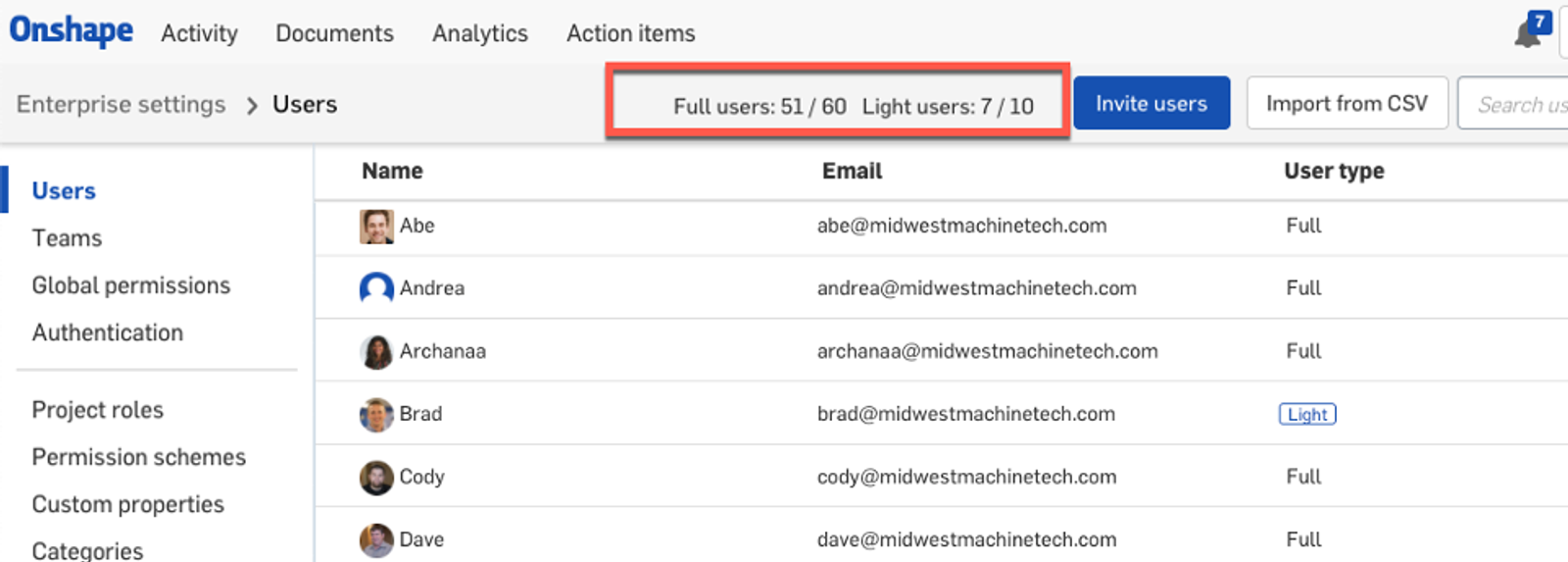

Onshape Enterprise administrators can now see how many full and light subscriptions have been purchased as well as how many are in use. Go to “Enterprise settings > Users” and the number of users are listed at the top.

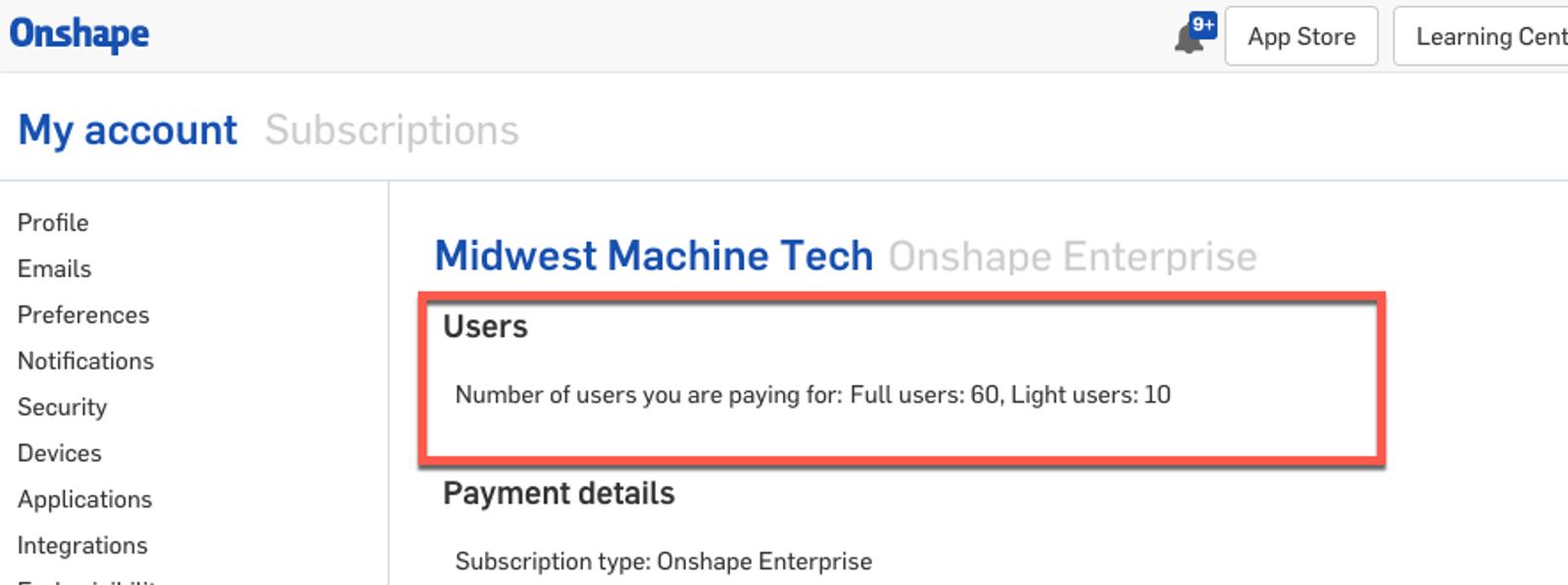

The number and type of subscriptions purchased also show under “My account > Subscription.”

Please take a moment to try out these new features and improvements and leave your comments below. For a detailed list of all the changes in this update, please see the changelog.

Important Note: The updates listed here are now live for all users when creating new Onshape Documents and over the next few days these features will also be available in Documents created before the date of this update.
