CAD and PDM Capabilities That Speed Up Every ECO

Integrating a PDM system into a CAD workflow means a seamless connection between design work and data management, enabling version control, part numbering, BOMs, and release approvals.

The best approach to a true CAD and PDM connection is to choose a setup in which data management is built into the design environment, rather than two separate systems with limited overlap.

The payoff shows up most clearly when something goes wrong. In an informal poll of engineers, 45% said manufacturing or quality problems trigger most of their design changes, and another 31% pointed to customer or spec changes.

So, when an ECO (engineering change order) lands on your desk, a well-integrated CAD and PDM workflow helps you move quickly. In this piece, learn why PDM built into CAD can introduce improved ways of working.

Two Ways to Integrate PDM With CAD

Layered PDM

The traditional approach adds a separate PDM system on top of file-based CAD to automate file copying, check-in, check-out, and locking. When an engineer checks out a file, it's copied to their local machine and locked so nobody else can edit it, and because the changes might take a day or six months, nobody else sees them until the file is checked back in.

This approach brings order to file management, but it keeps engineers working one at a time. It also requires ongoing maintenance of servers, local caches, and sync jobs, and every handoff between the CAD tool and the PDM tool creates a chance for metadata to get lost or versions to drift apart.

These limitations also make it harder to leverage AI. When design data is organized between local files, the CAD environment, and the PDM database, AI tools can’t see the whole picture as effectively.

PDM Built In

The modern approach stores the design in a central database where CAD and PDM are the same system. Because there are no files to check out, save, copy, or back up, version control happens automatically as a byproduct of design work, and multiple engineers can edit the same design at the same time.

With this approach, “integration” is less about connecting two tools and more about configuring the data management rules your team will follow. It’s also best suited for fully realizing AI capabilities in CAD. When geometry, metadata, version history, and release status live in the same cloud, AI tools can work with complete and current data.

How Built-In PDM Makes ECOs Easier at Each Stage

Features for Scoping the Problem

The first hours of a quality problem decide how fast the fix ships, so your tools should answer the critical questions in seconds.

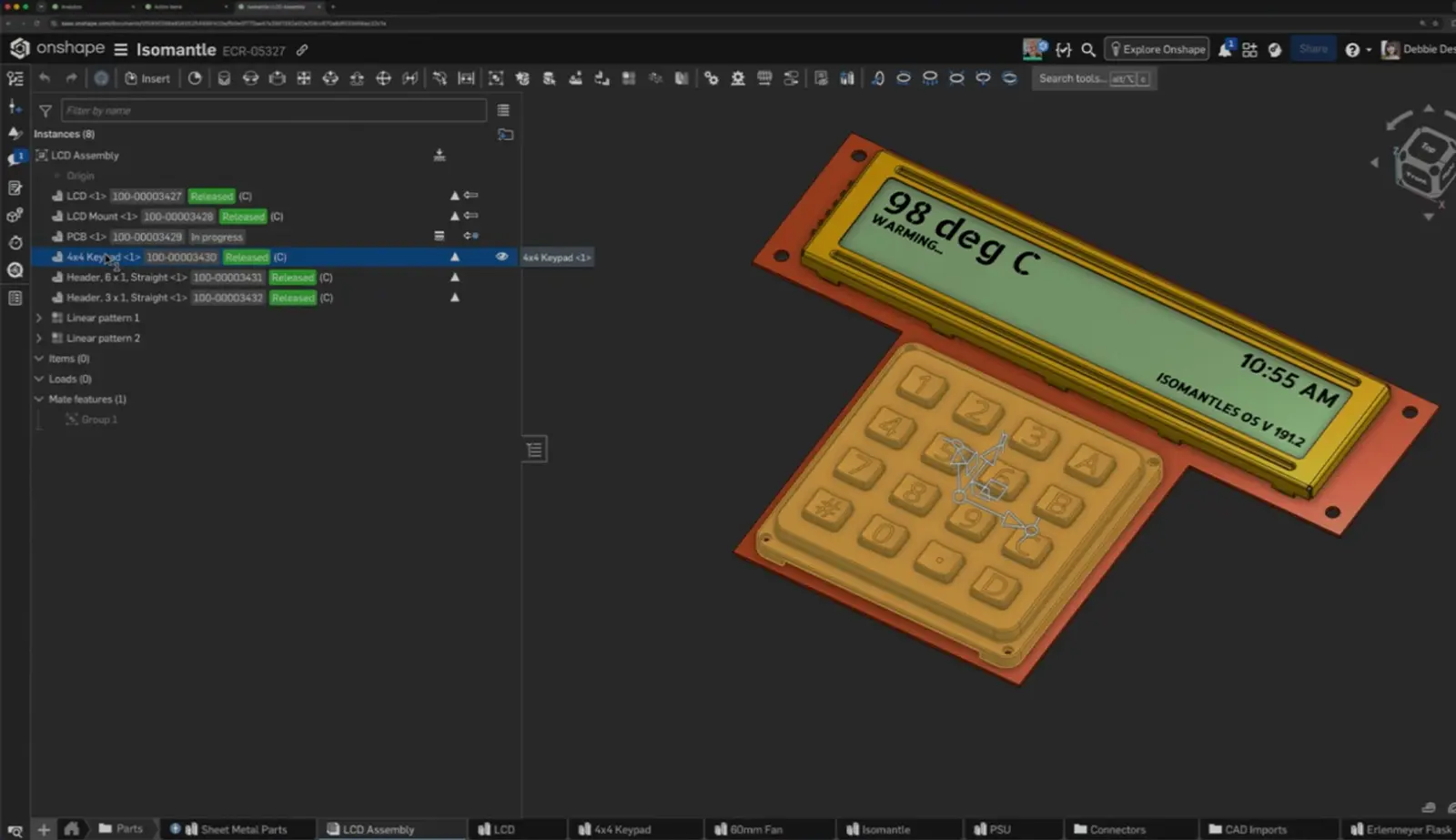

• Instant Where-Used Reports: A single right-click on any part should show every assembly and version that uses it, so you know the full scope of a defect before the first meeting ends.

• Clear Design States: Live work in progress, frozen versions, and approved releases should be visually distinct, and clicking any point in history should show exactly what went into production.

• Searchable History: Filtering changes by branch, date, or type lets you trace the root cause in minutes rather than reconstructing it from memory and email.
• Secure Access From Any Device: A manufacturing engineer should be able to pull up the model on a shop floor tablet and a supplier should be able to review it in a browser, with permissions you can grant by person or team and revoke the moment access is no longer needed.

Features for Planning and Designing the Fix

This is where integrated CAD and PDM save the most time, because the whole team can work in parallel while every change is captured automatically.

• A Tracked Task and Protected Branch for Each ECR: Each change request should live alongside the design as a task with an owner, priority, and approval, linked to its own branch where engineers can try fixes while the locked main design stays untouched.

• Simultaneous Editing: One engineer can modify the part while another updates the drawing, and a third checks the BOM, all in the same design and all seeing each other’s changes within seconds.
• Automatic History and Restore: Every edit should be recorded without a save button, and any fix that makes things worse should be rolled back to an earlier point with one click.
• Assemblies, Drawings, and BOMs in Sync: Swapping a part should update every assembly that uses it, and edits to the BOM should flow to drawings without manual transcription or side spreadsheets.

Features for Closing Out the ECO

Review and release are where integration pays off or falls apart, so feedback and approvals should move without traffic jams.

• Side-by-Side Comparison: Comparing the start of the ECR with the current design highlights every changed feature in the model, so reviewers see exactly what moved.

• Comments and Tasks on the Model: Tagging a colleague on a specific feature and assigning it as a task sends them straight to that spot, and the whole exchange stays in the design history for future reference.

• Automatic Dependency Checks: Before you submit, the system should flag unreleased parts, missing properties, and unresolved comments, which stops rejected releases before they happen.
• Custom Approval Workflows: Workflows defined in code can route each change through exactly the reviews it needs, from a single engineering sign-off to staged DFM, cost, and quality approvals.

• Self-Updating Drawings and Permanent Links: Approved drawings should fill in the approver, date, and revision automatically, and each release should get a permanent link you can share in Slack or embed in your ERP instead of exporting a PDF.
• Merge into Main: Merging the ECR branch back into the main workspace ensures anyone who opens the design sees the latest approved state.
• Obsolescence Without Losing History: Retiring the old part removes it from active searches so nobody reuses it, while keeping its full history available for quality investigations and compliance.
• Analytics That Reveal Bottlenecks: Dashboards and scheduled reports show where releases stall and how long changes take, giving managers the data to make every future ECO faster.

How Onshape Combines CAD and PDM in One System

When CAD and PDM are separate systems, friction builds up at every handoff. Too many engineering teams have come to accept that friction as the cost of doing business, but everything described above already exists in one place with Onshape.

Onshape is PTC’s cloud-native CAD and PDM solution, in which design, version control, release management, and collaboration were built together from the start, rather than a PDM system layered on top of file-based CAD.

The result is a faster path from the moment manufacturing finds a problem to the moment the fix is released, with tools that accelerate the solution instead of adding steps to manage the tools themselves.
